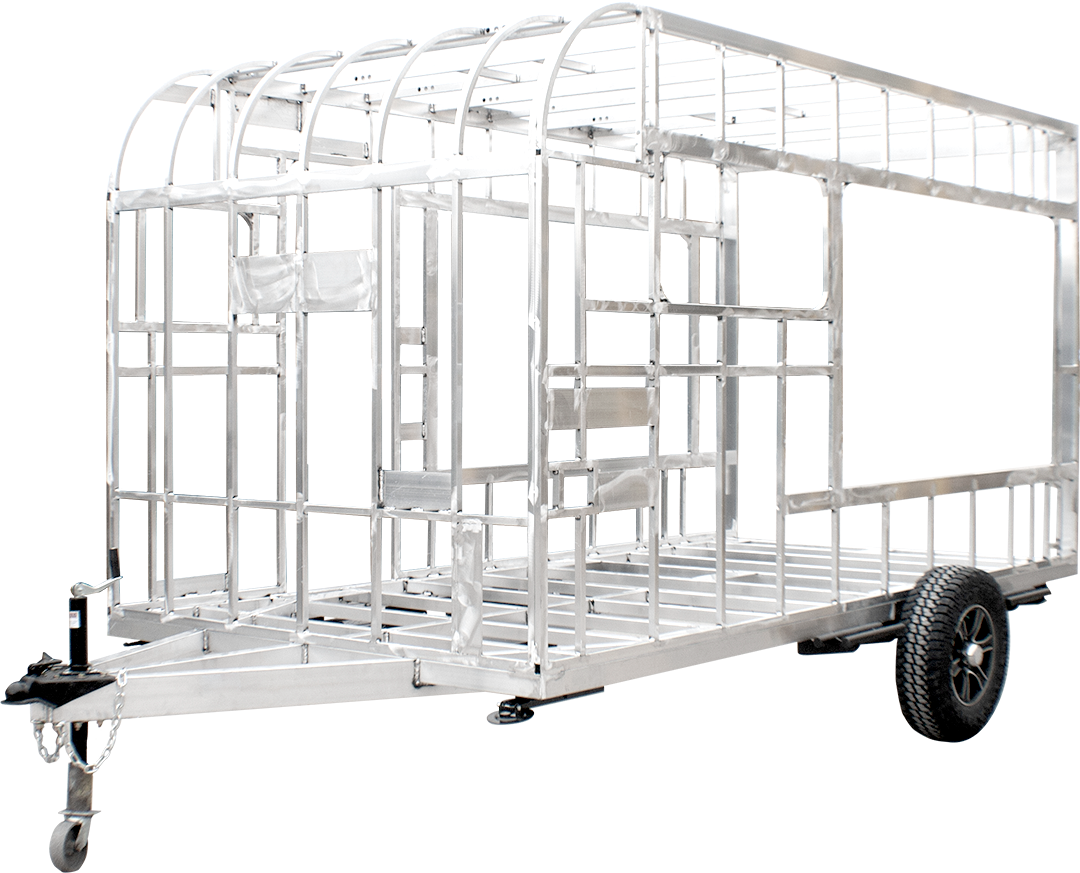

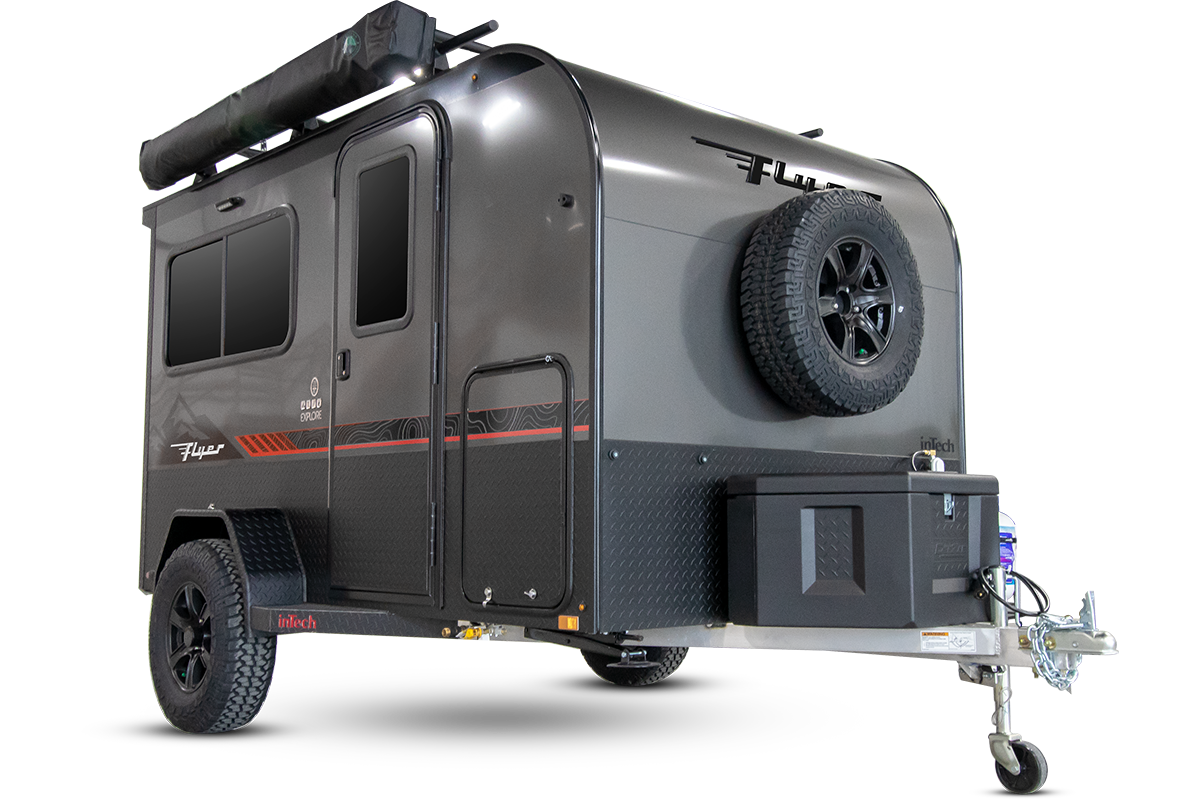

Rugged Design
Explore all the corners of the world. Every Flyer is built utilizing an All-Aluminum, Fully Welded Cage Frame, making them strong enough to handle conditions when you find yourself off the paved trail. Explore is the micro-lite toy hauler that can go where traditional RVs simply cannot.

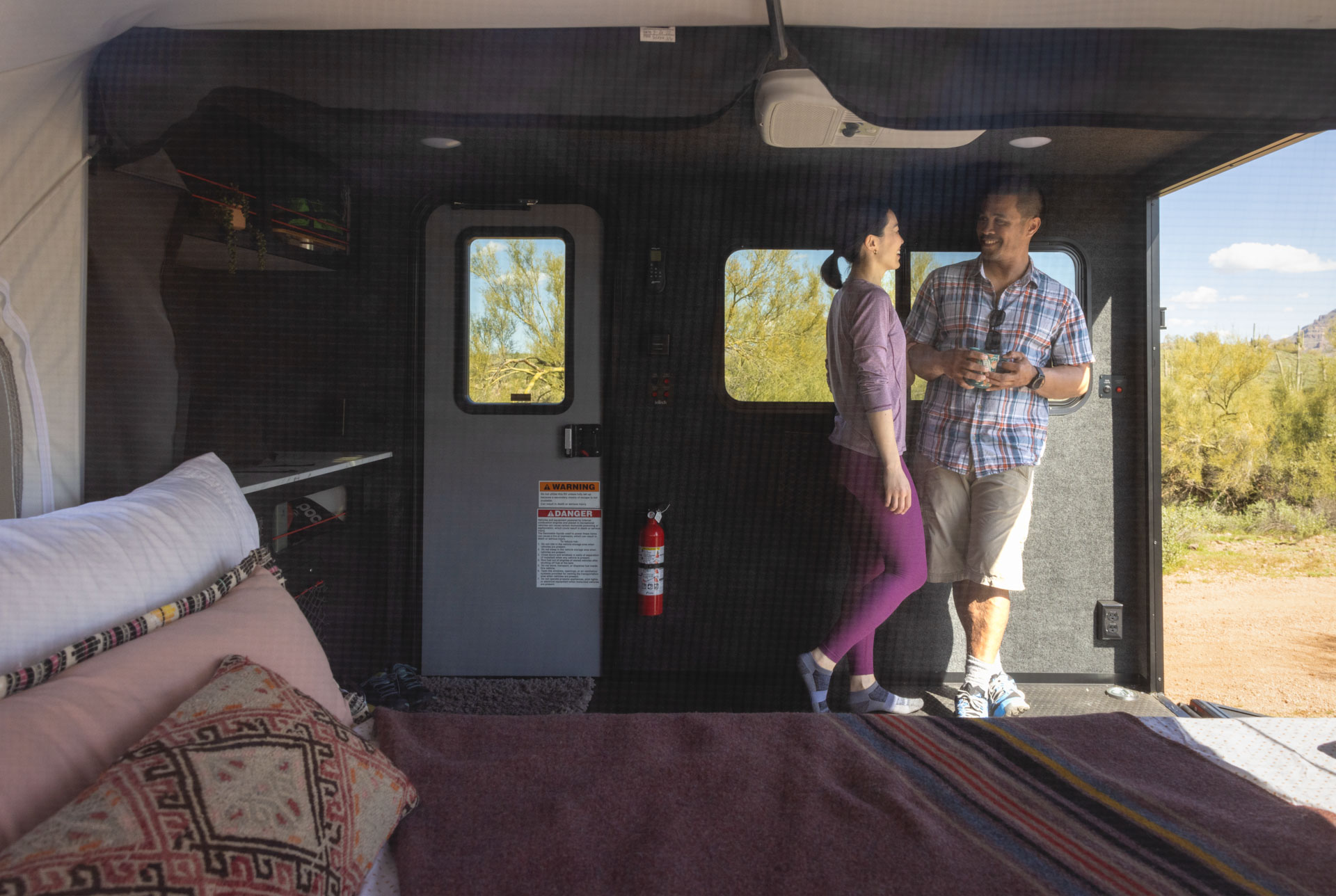

Spacious Interior
Explore is the second largest of the Flyer models and comes standard with a roadside tip-out and can be optioned with a second tip-out on the curbside. Explore is larger on the inside than you might imagine and can comfortably sleep 4-6 adults depending on the number of tip-outs.

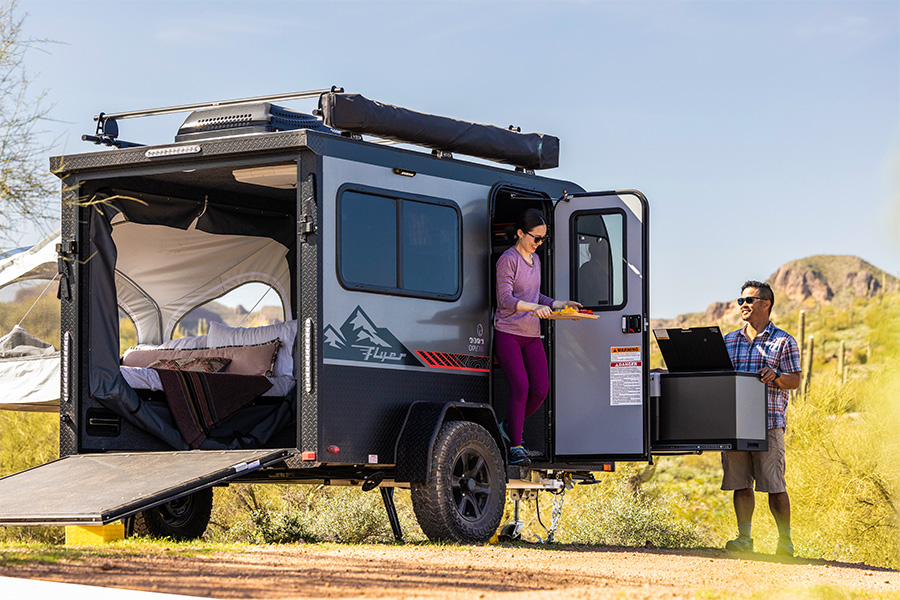

Adventure Ready
Explore pulls double-duty, not only as a spacious adventure camper, but also as an easy-to-tow micro-lite toy hauler. Explore takes you places you can’t go with a traditional toy hauler and without the need for a dedicated tow vehicle.
Fresh Water System
The RV fresh water system is a vital component of any recreational vehicle that allows you to have access to clean water. Comes with a spray away hose.

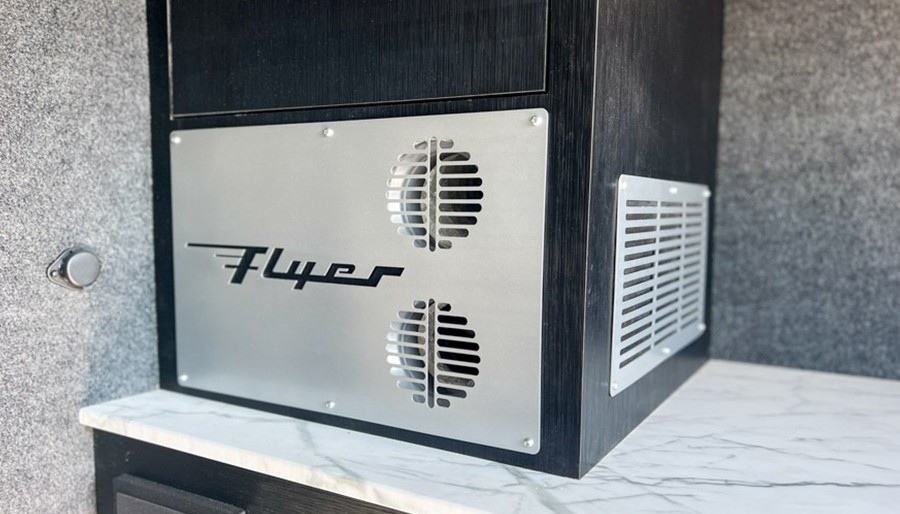

LP Furnace
Embrace the great outdoors without sacrificing comfort by going off-grid and immersing yourself in nature while still enjoying modern amenities.

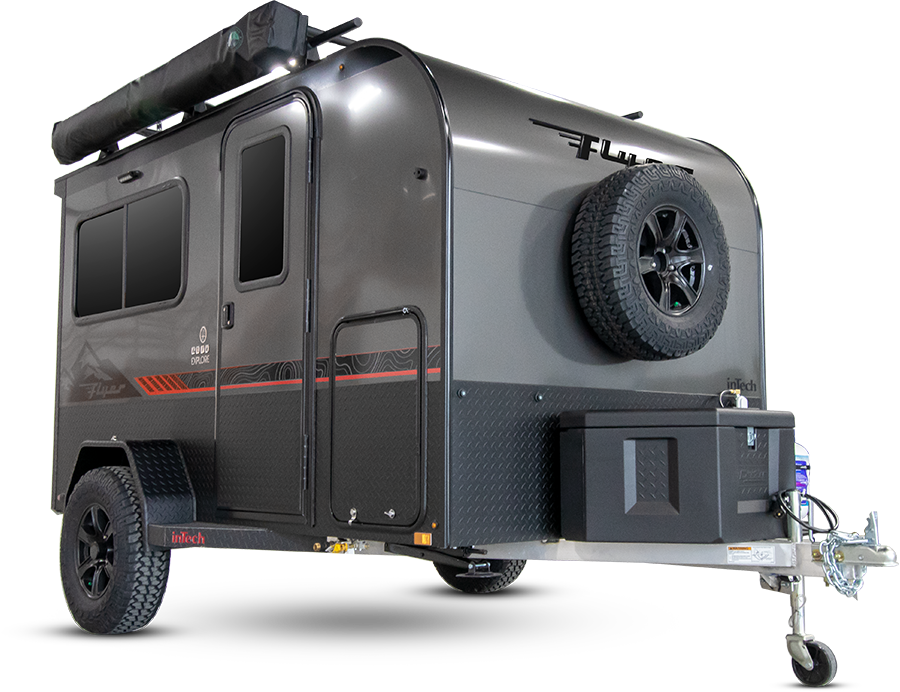

Colors

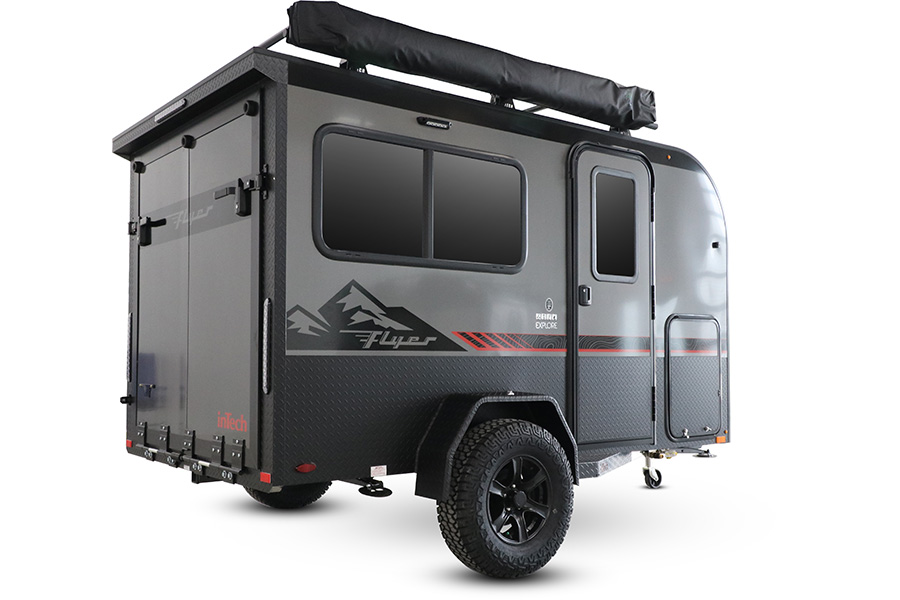

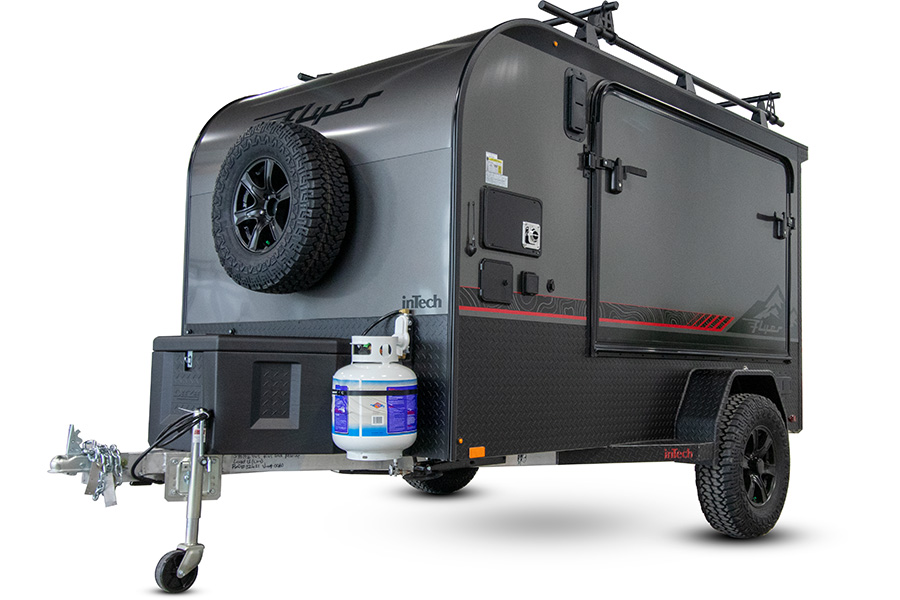

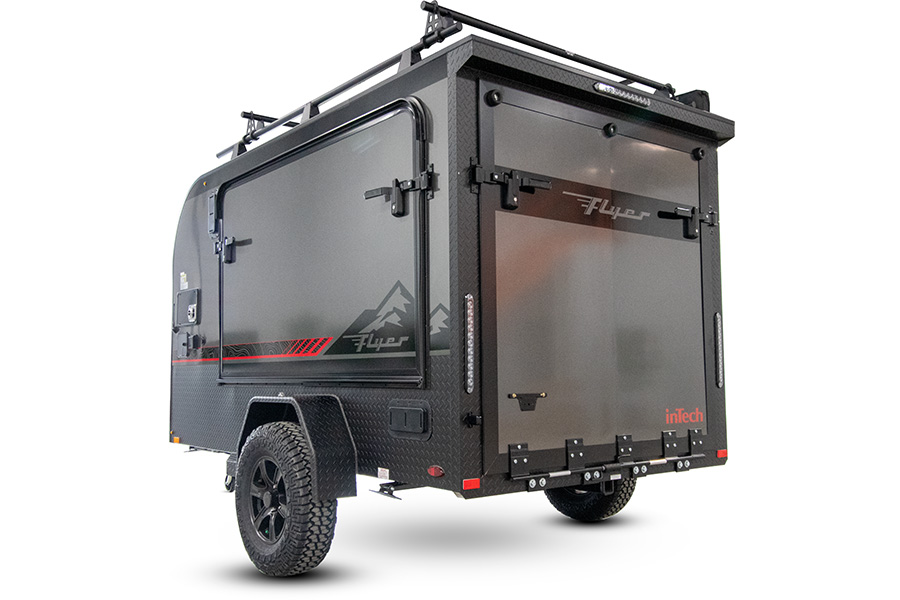

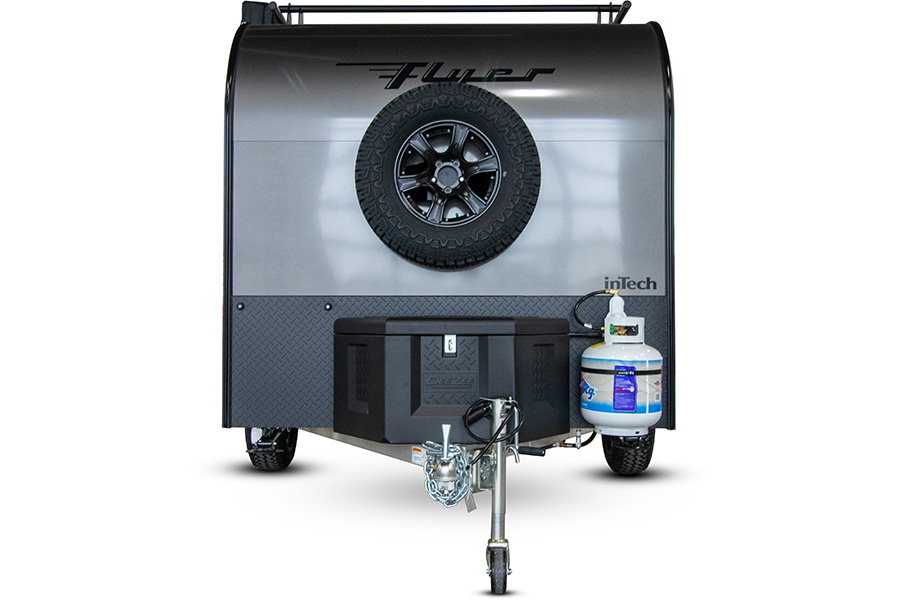

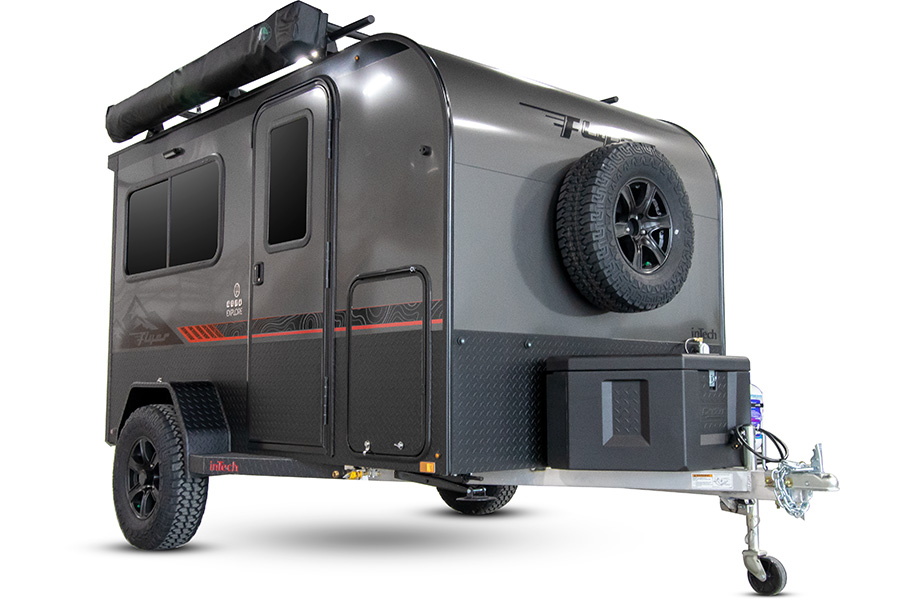

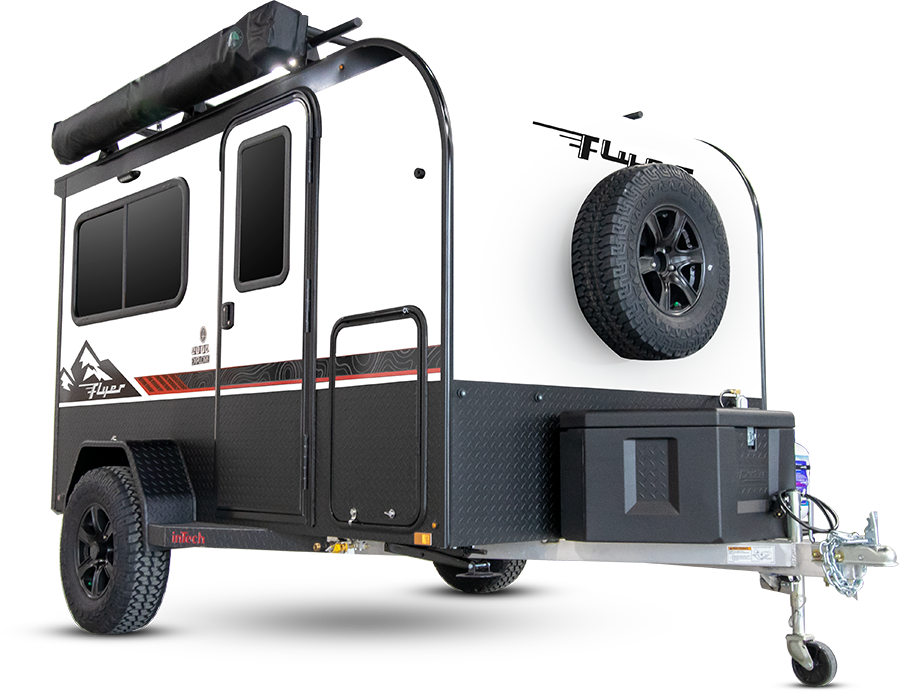

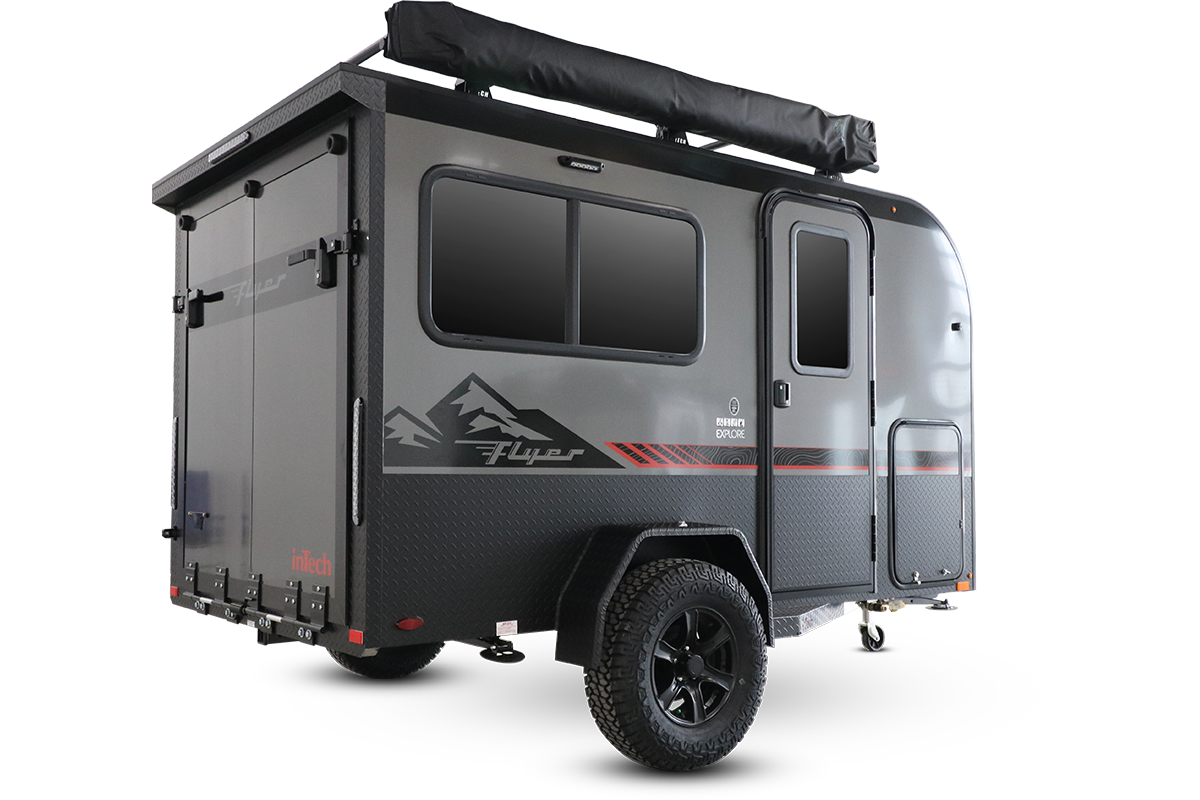

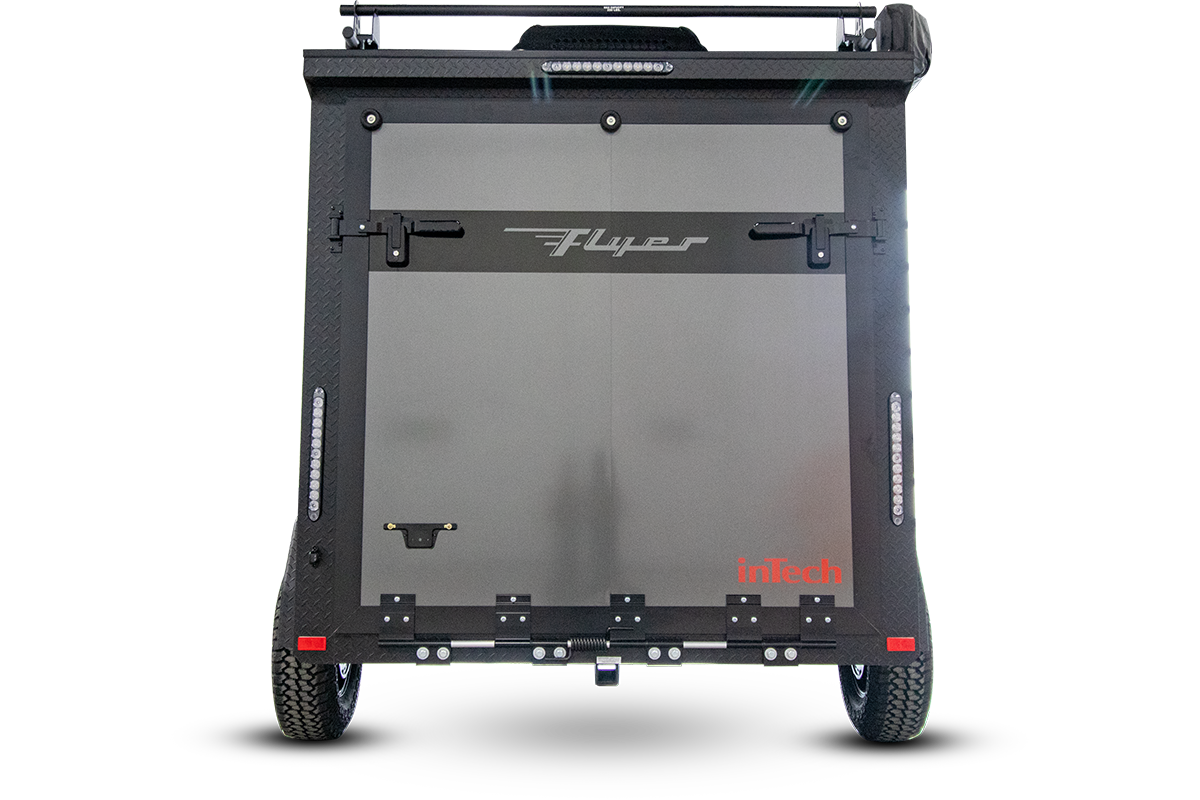

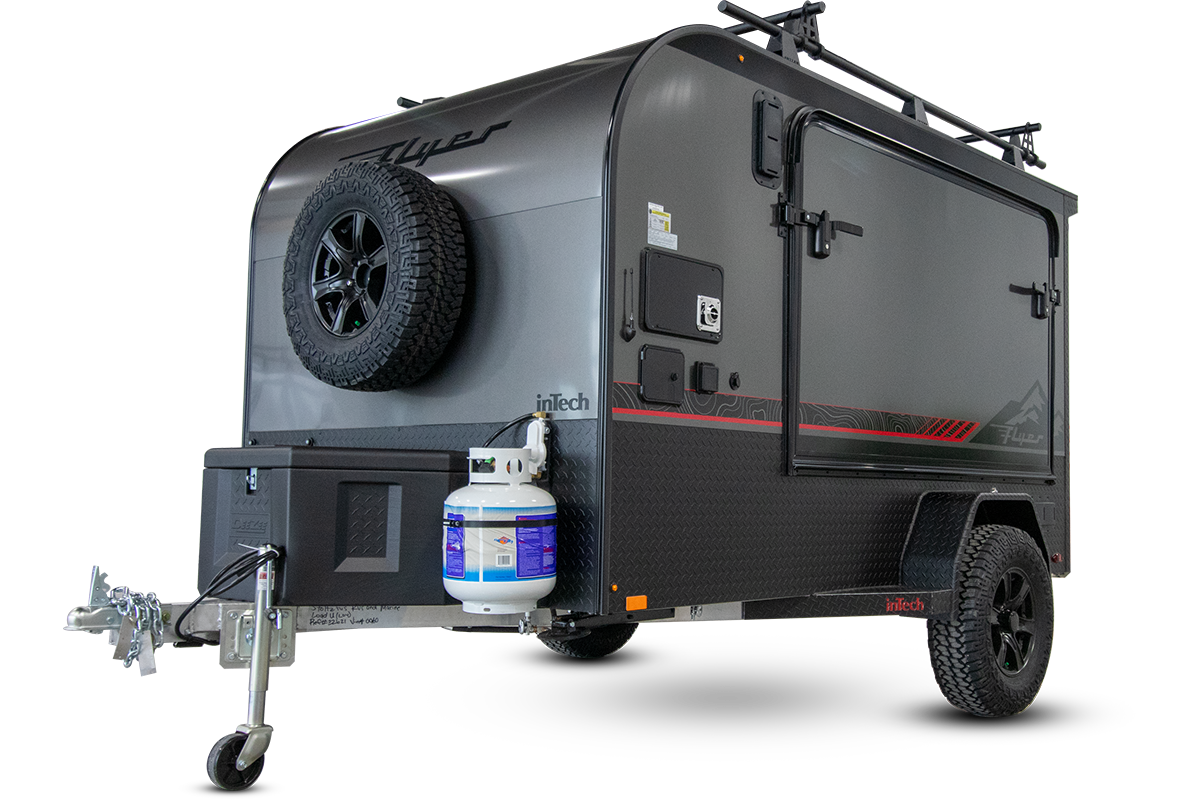

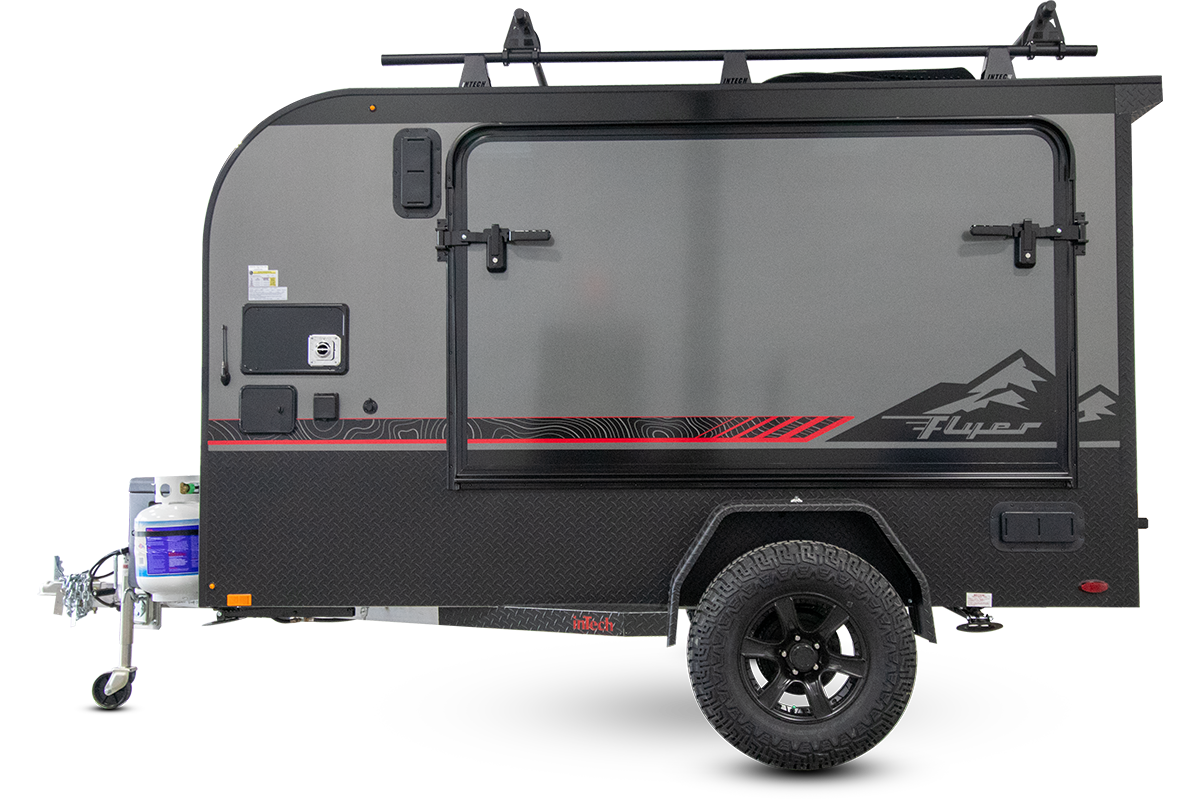

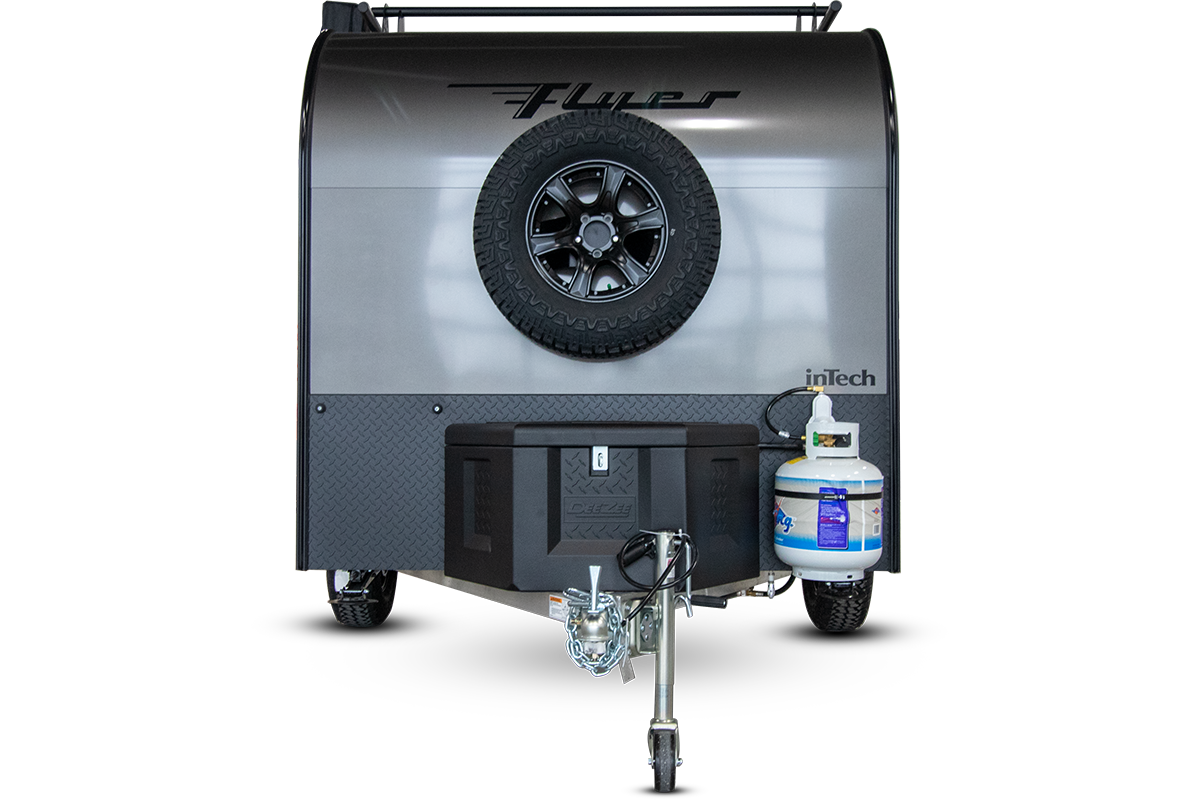

Exterior
360° Interior
Gallery
Options

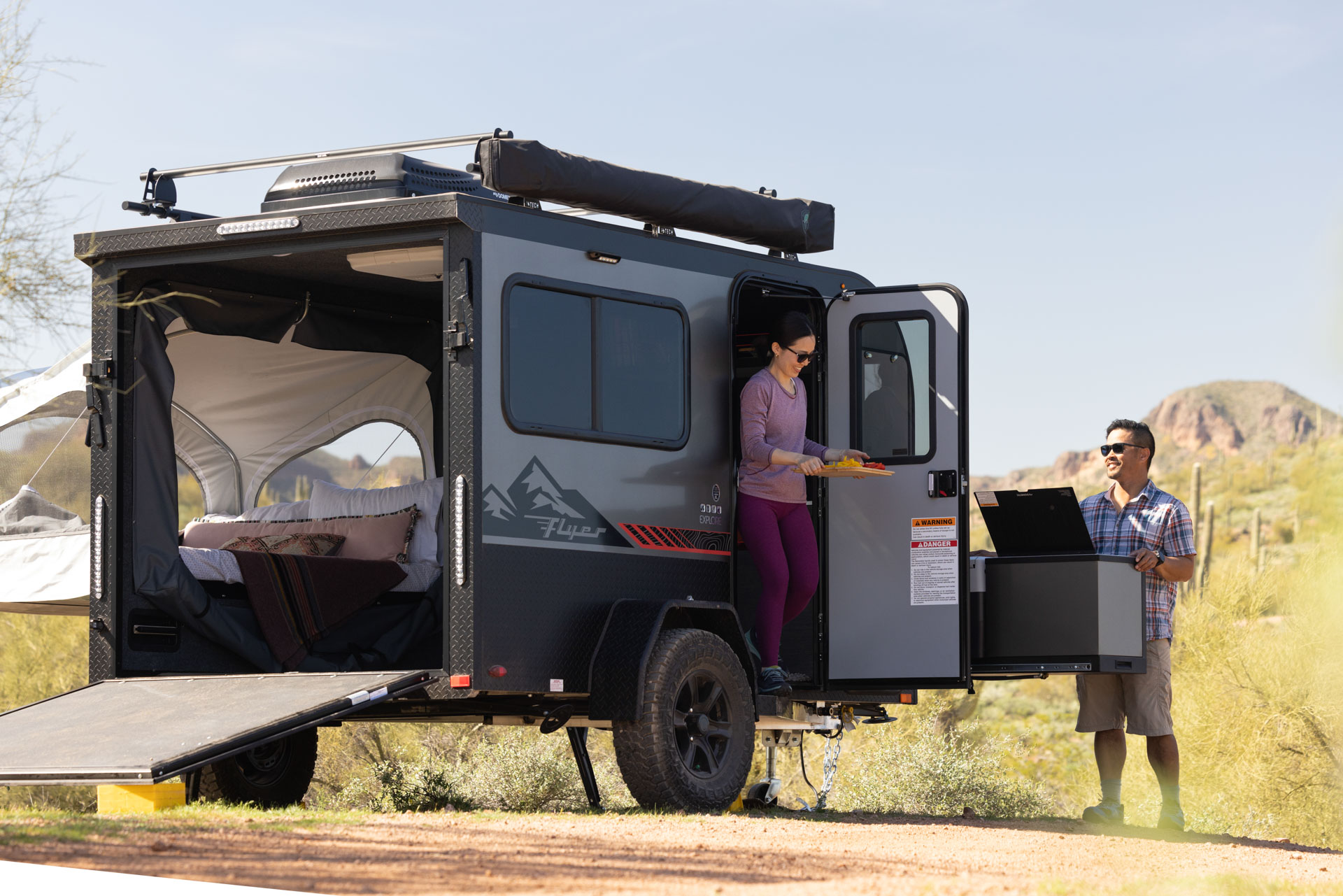

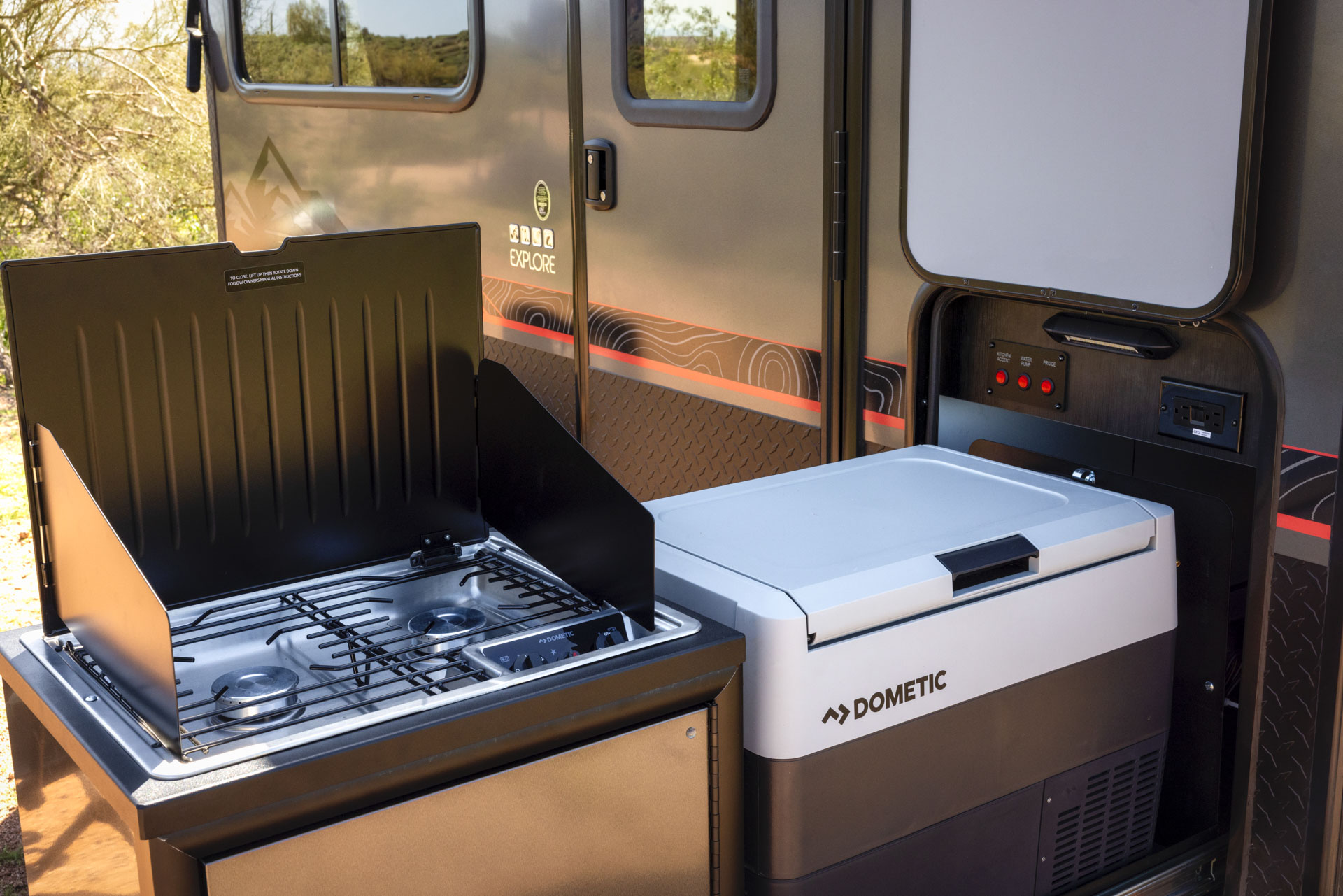

Slideout Kitchen
The innovative slideout kitchen sets up in just seconds. The two-burner stove utilizes a large storage cabinet that's perfect for storing all your cooking essentials. A removable table creates a unique L-Base kitchen with plenty of prep area and a 120V recept nearby. Keep your food and beverages cold without the inconvenience of ice with the 45 quart 12V refrigerator. A 12V LED light conveniently lights the entire kitchen area so you can cook day or night!

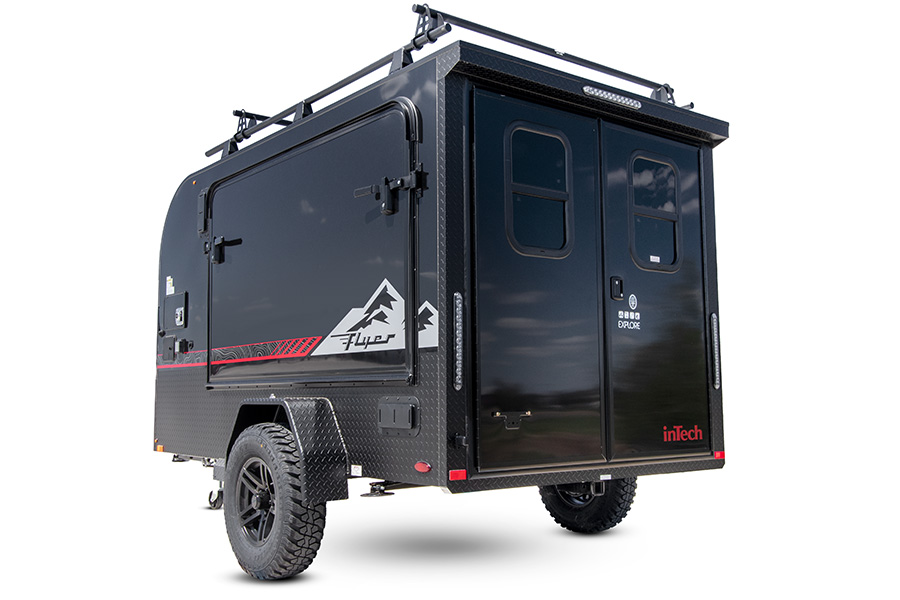

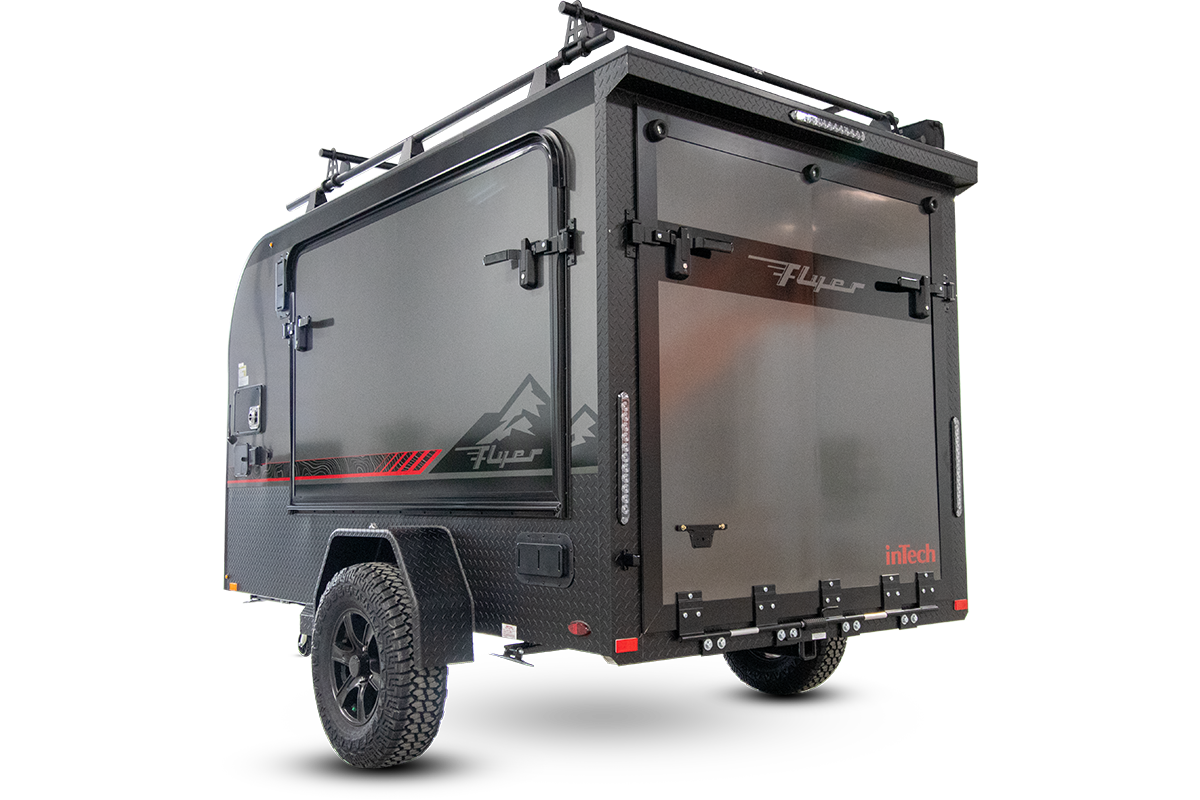

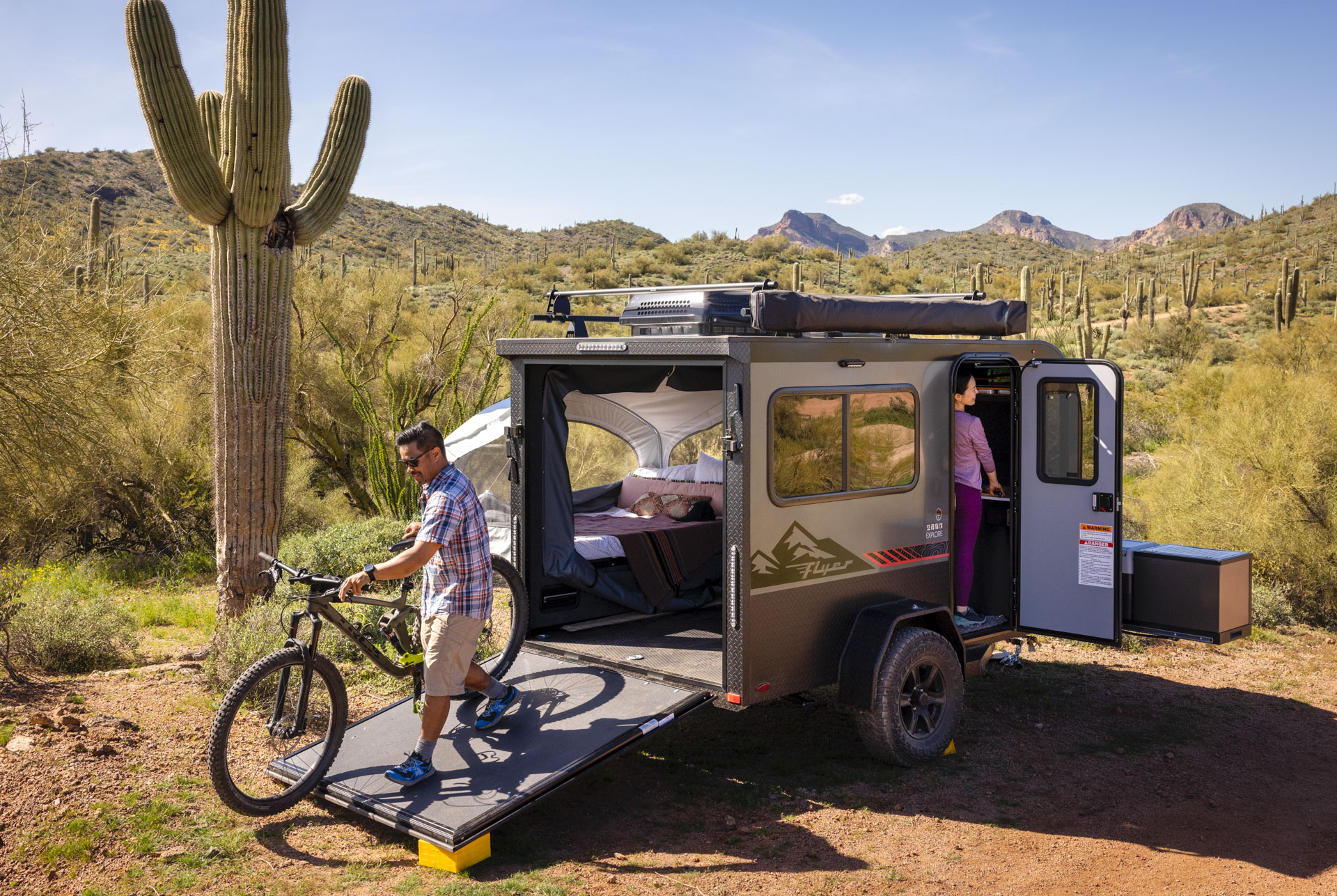

Double Rear Doors

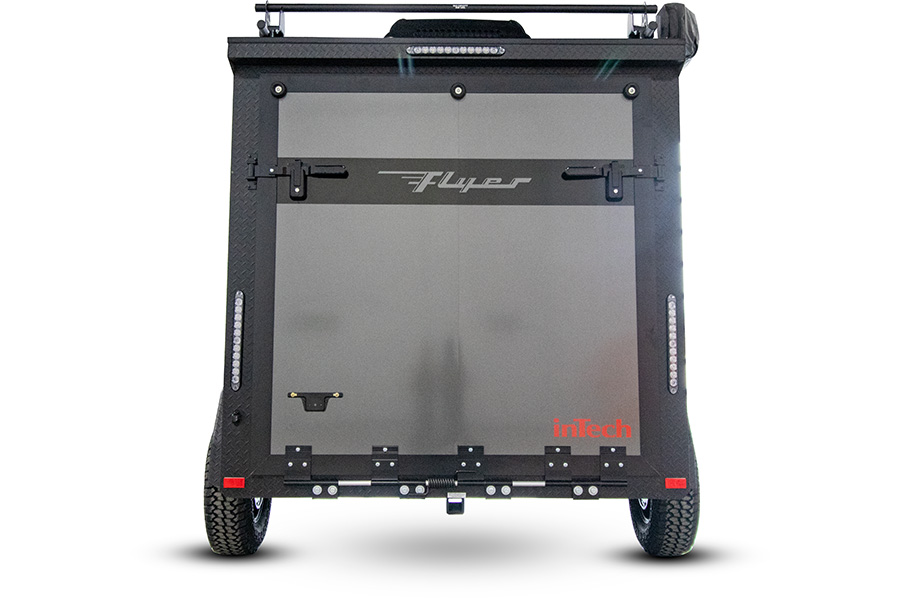

The Double Rear Doors are convenient for getting in and out of the camper when a ramp is not needed.

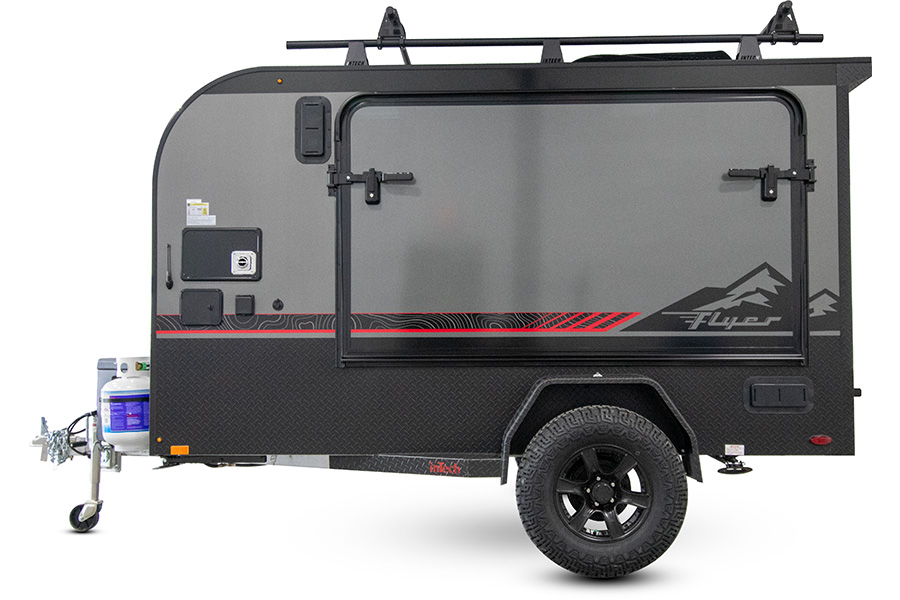

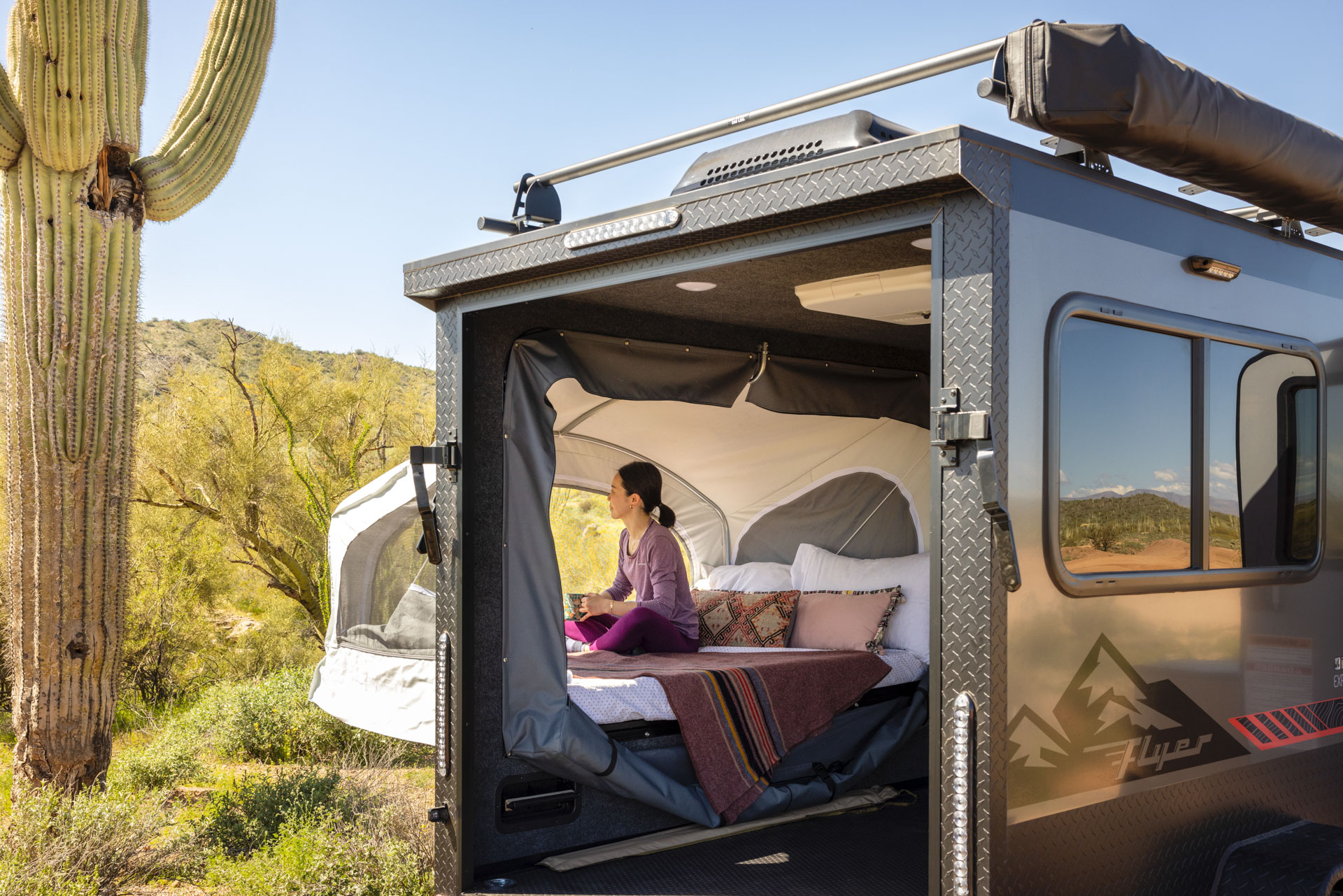

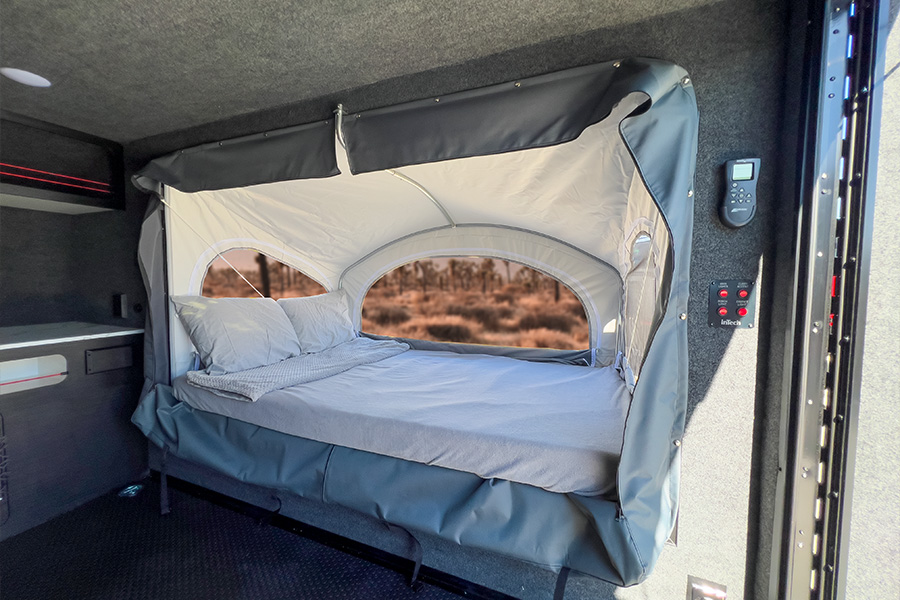

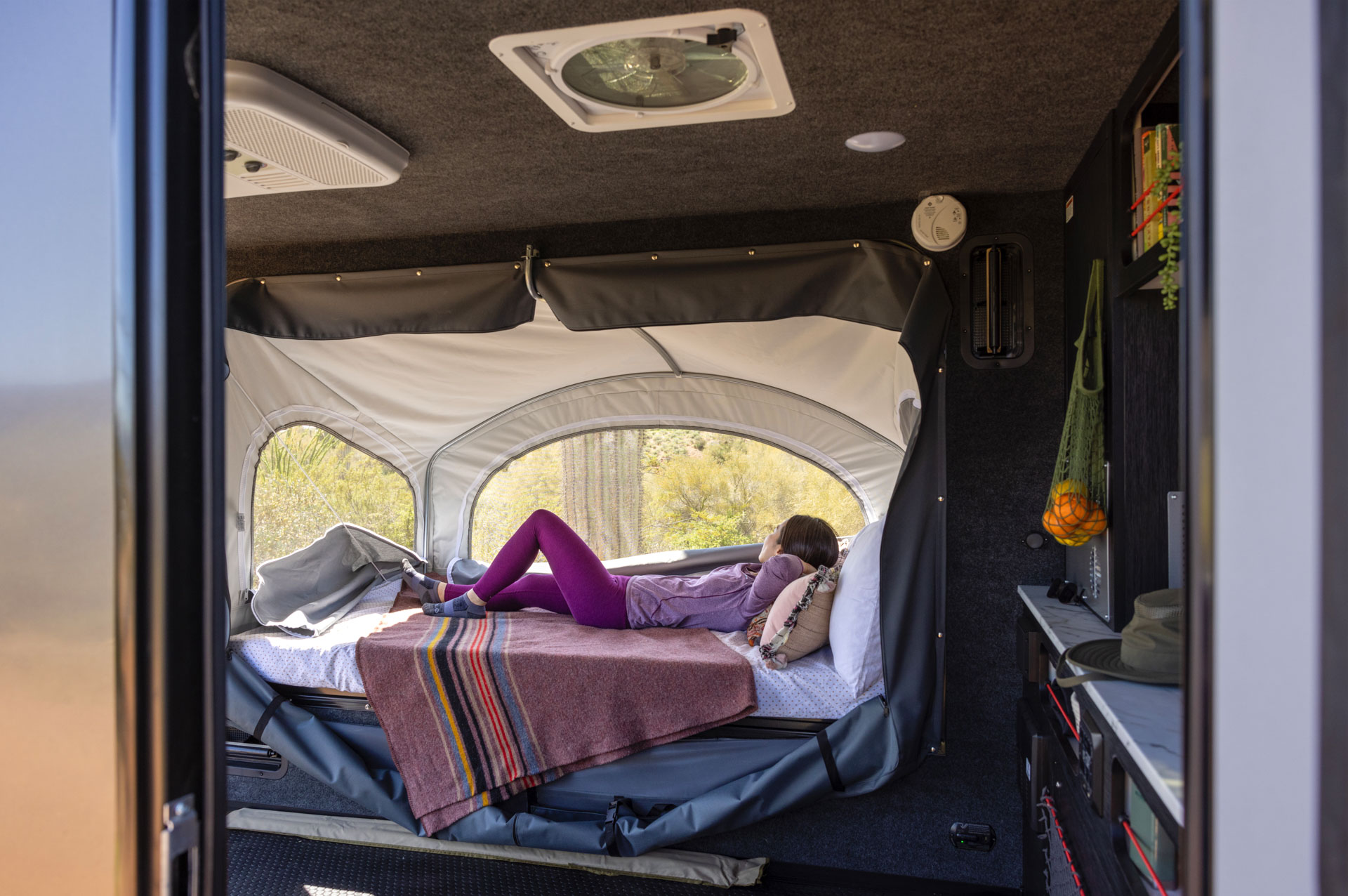

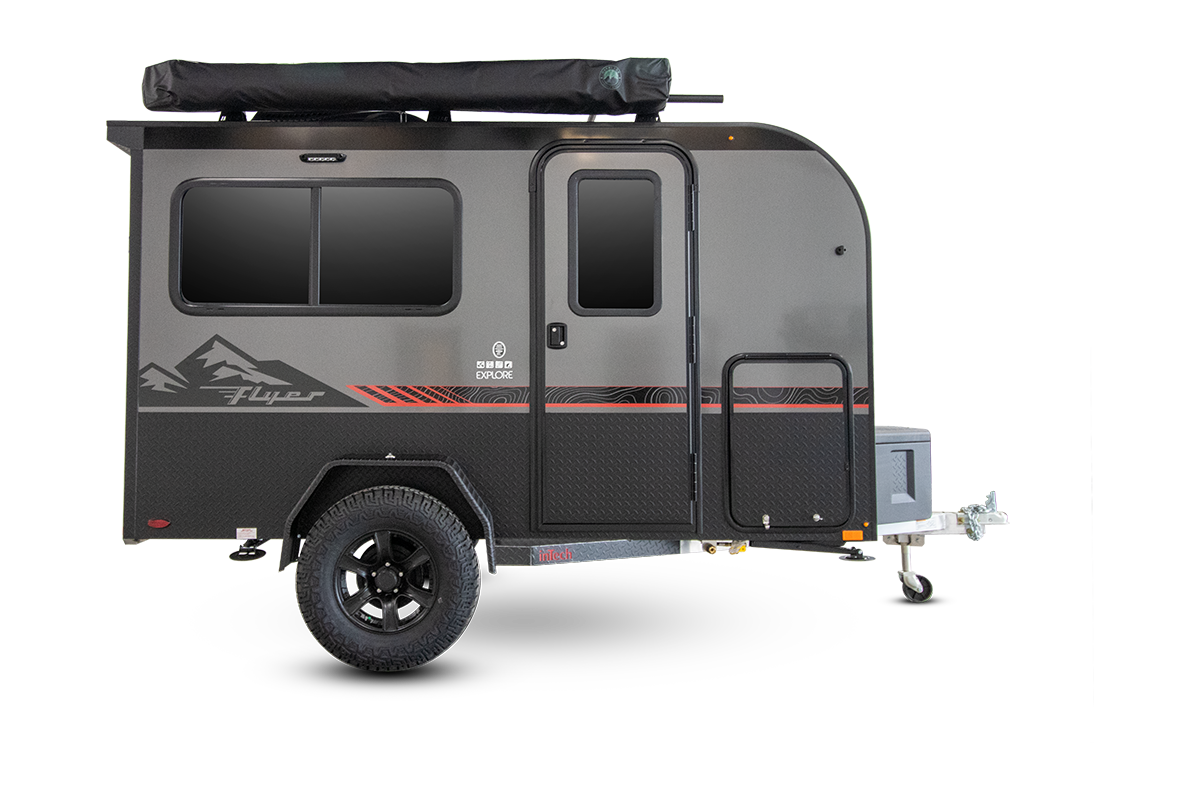

Curbside Tip-Out
Increase your overall living space by adding the Curbside Tip-out Bed. This option eliminates the curbside door and window and requires rear ramp door to become rear double doors.

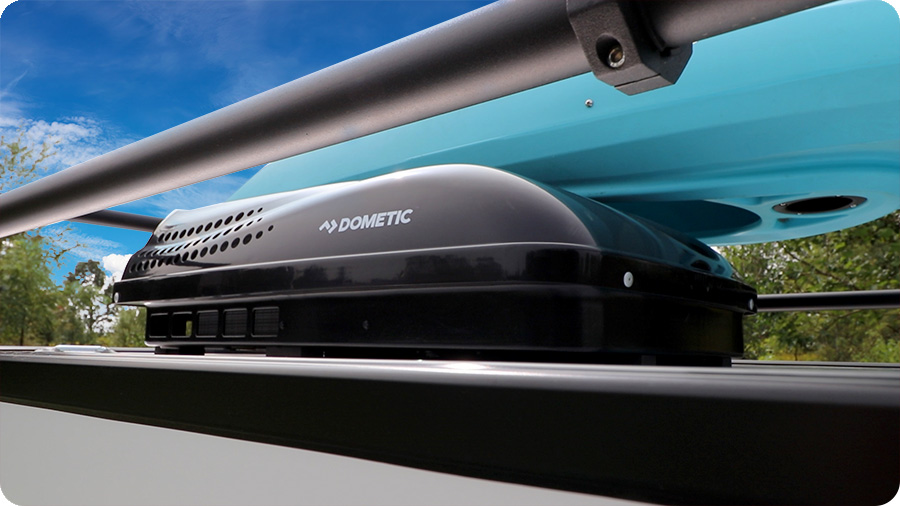

A/C
Stay cool with our low-profile rooftop AC.

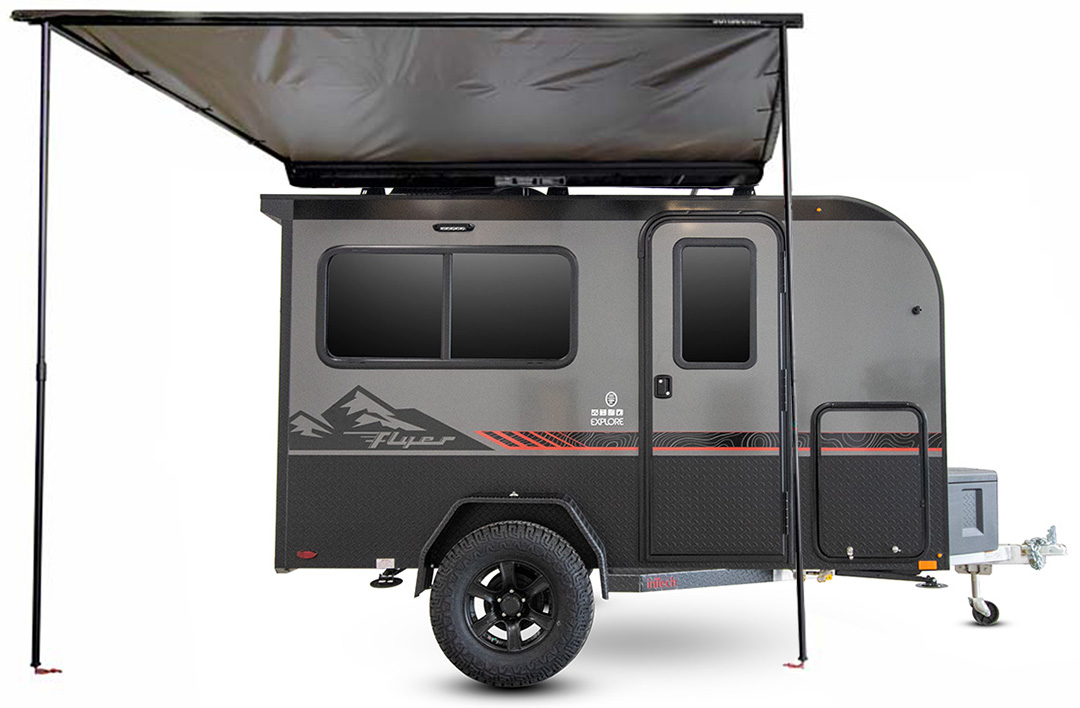

Straight Awning
Quick, easy and simple protection from the elements. Roof Rack required for mounting.

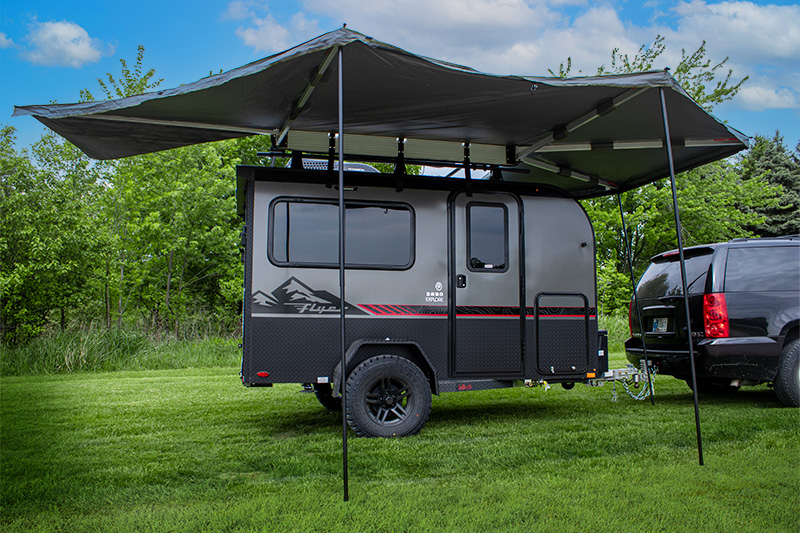

270 Awning
Provides 270° of coverage on both the side and front of the trailer, perfect for covering the optional Slideout Kitchen and prep area. Roof Rack required for mounting.

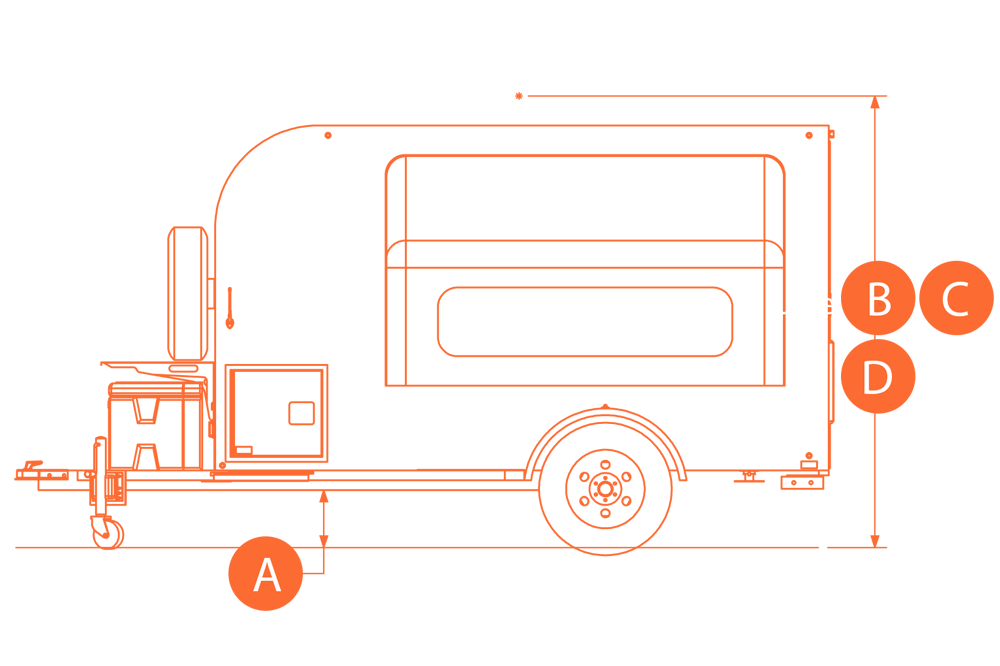

Dimensions
- (A) Ground Clearance - 11 1/2"
- (B) Overall Height w/ MaxxAir Vent - 7' 9"
- (C) Overall Height w/ A/C - 8' 3"
- (D) Overall Height w/ Roof Rack - 8' 4"
- Off-Road Tires Adds Additional 2"
- (E) Rear Double Door Clear Opening Height - 5' 1"
- (F) Rear Ramp Clear Opening Height - 5' 3"
- (G) Rear Double Door Clear Opening Width - 4' 11"
- (H) Rear Ramp Clear Opening Width - 5' 2"
- (I) Overall Width - 7' 8"
- (J) Overall Width w/ Kitchen Out - 15' 9"
- (K) Kitchen Width - 4'
- (L) Interior Width - 5' 9"
- (M) Box Width - 6'
- (N) A-Frame Length - 3' 5"
- (O) Box Length - 10' 5"
- (P) Overall Length - 13' 9"
- (Q) Tip-Out Bed Width - 4' 1"
- (T) Tip-Out Bed Length - 7'

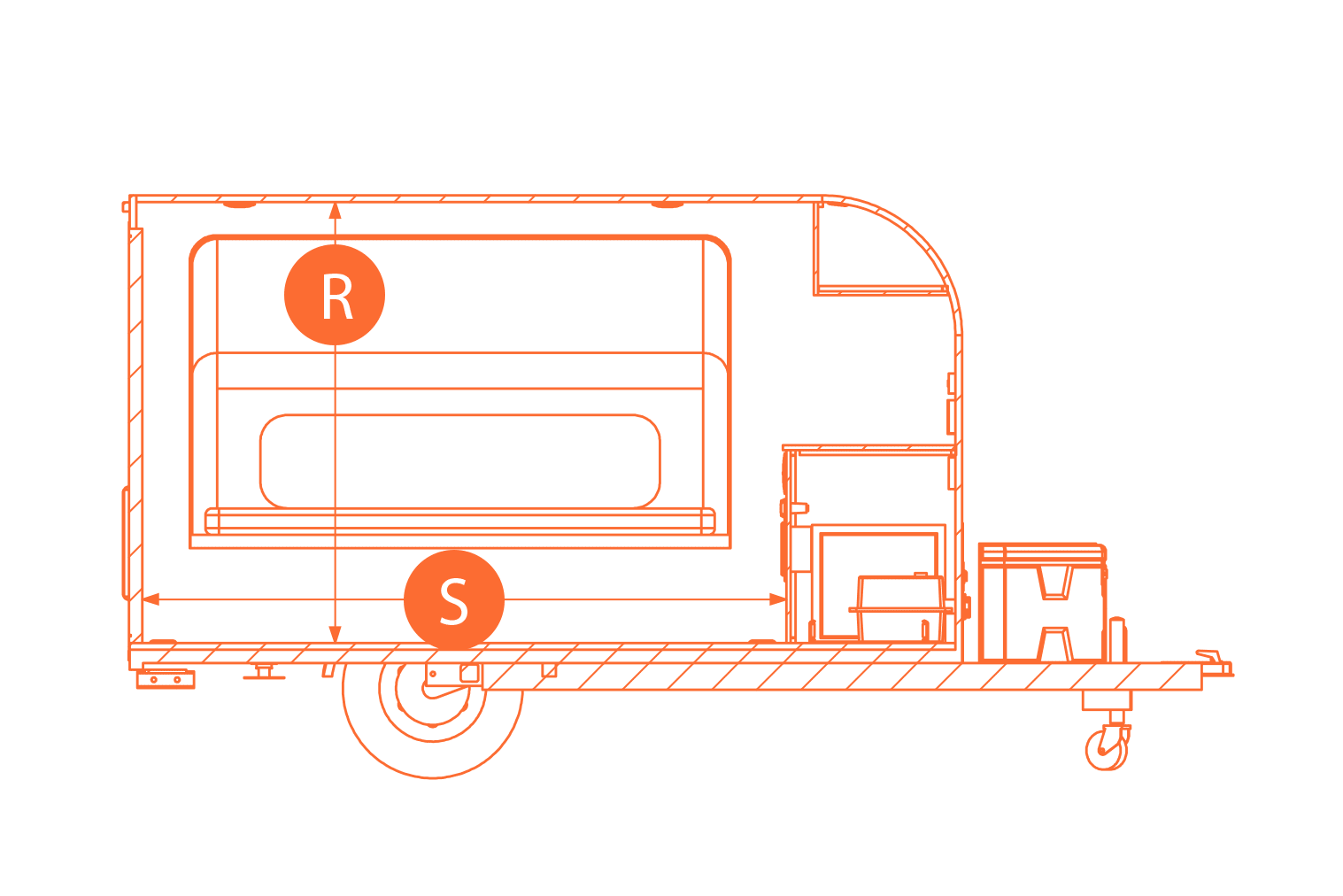

- (R) Interior Height - 6'
- (S) Interior Length - 8' 1"
Specifications
Dimensions, equipment, and pricing are subject to change without notice. For complete and up-to-date details regarding inTech RVs, please speak to an authorized inTech RV dealer.
Overview
| Exterior Width | 7' 8" |
| Exterior Height | 8' 11" |
| Exterior Length | 13' 9" |
| Dry Weight | 1,580 - 2,110 lbs |
| Tongue Weight | 250 - 485 lbs |
| GVWR | 2,990 lbs |
| Net Carrying Capacity | 880 - 1,410 lbs |
| Ball Height | 17" |
| Sleeps Capacity | 2 - 4 |
| Garage Space | 5' 9" x 8' 1" |
| Ramp Door Capacity | 2,200 lbs |
Tanks
| Fresh Water Capacity | 8.5 Gallons |
Construction and Exterior Features
| Frame | inTech Fully Welded Aluminum Cage Frame |
| Coupler | 2 5/16" Ball |
| Axle | Smooth Ride Torsion Suspension |
| Rear Receiver | 2" Receiver - 175# Capacity |
| Tires | Rugged ST235/75R15 on Aluminum Wheels |
| Shore Power Inlet | 30 Amp - 120 V |
| Solar Prep | Pre-Wired Solar Port on Side Wall |
| Exterior Walls | Hung .040 Aluminum (Wood Free) |
| Roof | One-Piece Aluminum |
| Insulation | Comfort Shell Insulation |
| LP Tank | 20 lb Tank |
| LP Quick Connect Port | 1 |
| Tongue Jack | Manual |
| Tongue Storage | Tapered ABS Storage Box |
| Spare Tire | Full Size - Front Mounted |
Kitchen and Dining
| Countertops | Thinscape Solid Surface |
| Cabinets | European Style Flush Cabinets |
Windows, Doors and Floors
| SubFloor | Solid NoFlex 3/4" Floor |
| Flooring | Rubber Coin Floor |
| Window Style | Frameless |
| Baggage Doors | Locking Doors w/ Slam Latches |
Appliances & Utilities
| Refrigerator | 40 Liter |
| Furnace | 12K BTU LP Furnace |
| Exhaust Fan | Multi-Speed w/ Rain Sensor |
| Stereo | Bluetooth Stereo w/ 2 Interior Speakers |
Bed Configurations or Sleeping Spaces
| Master Bed | 46" x 81" Tip Out Bed |
