724-X
Welcome to Black Wing 724-X

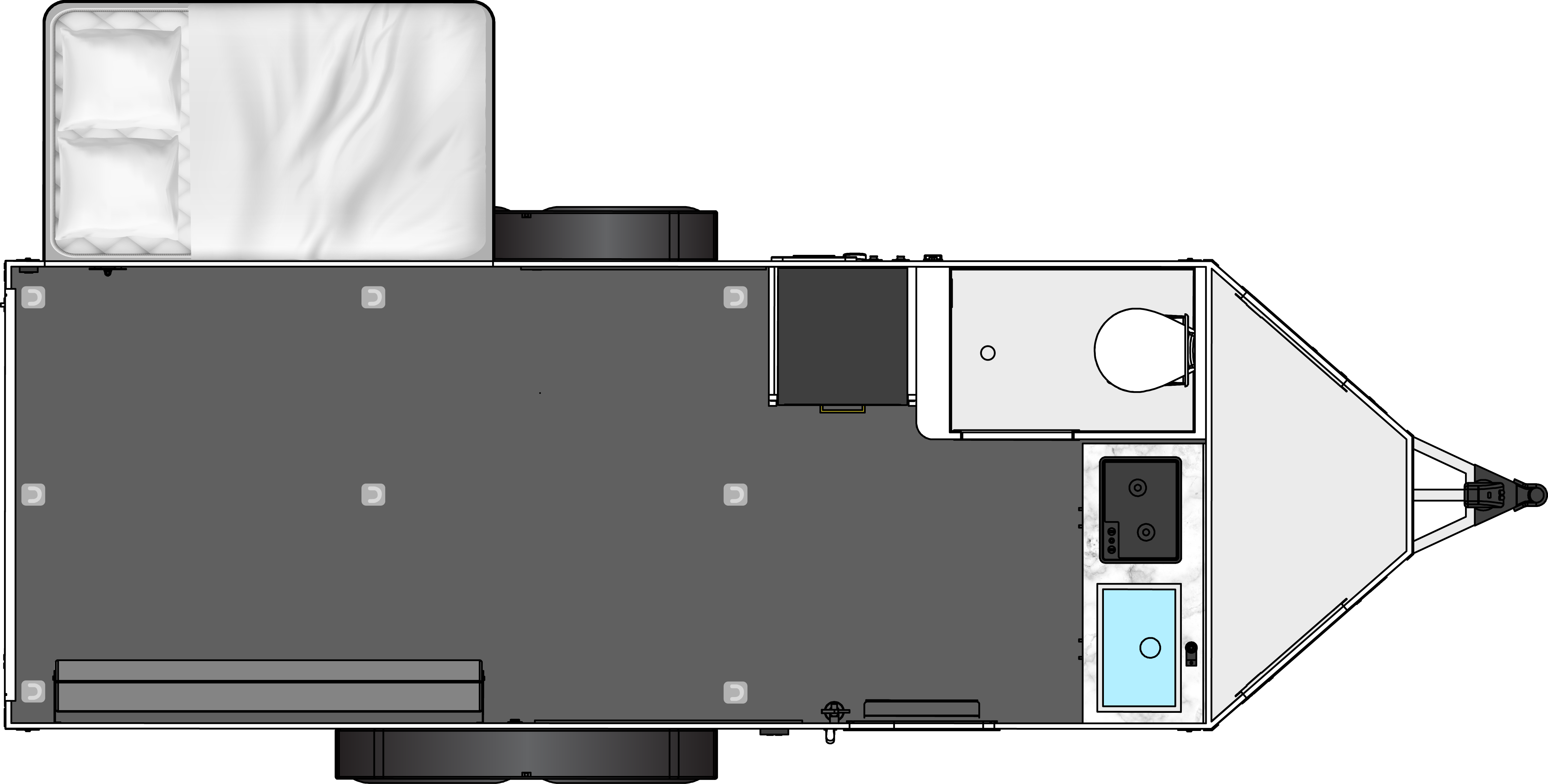

Take a look at the Black Wing 724-X Floorplan

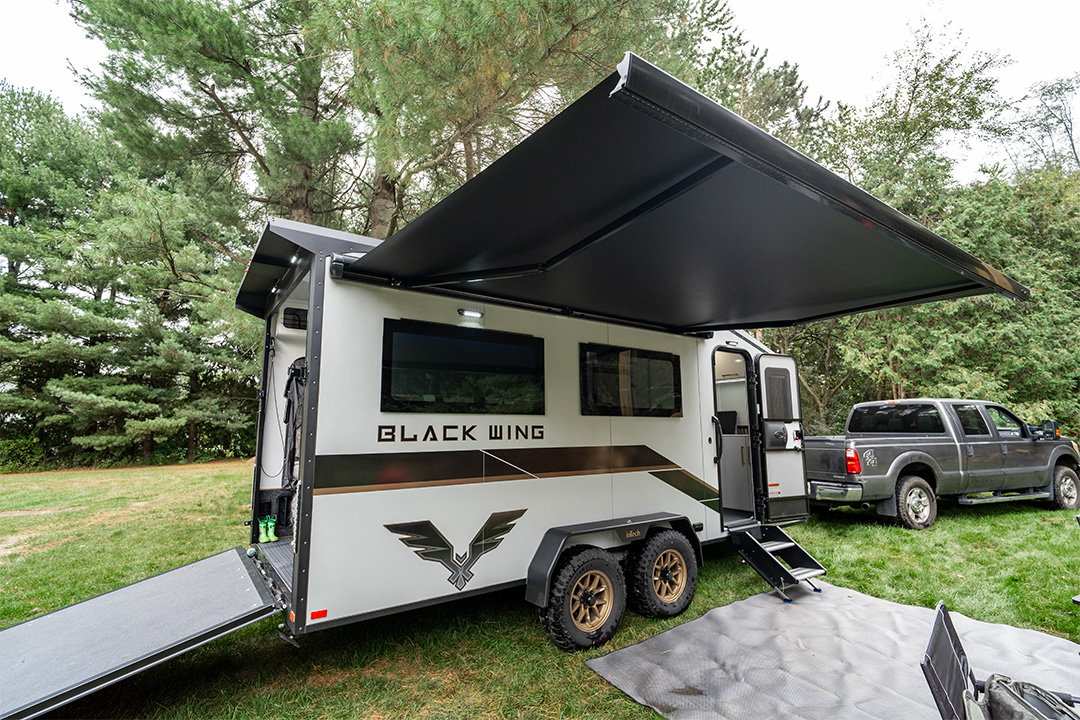

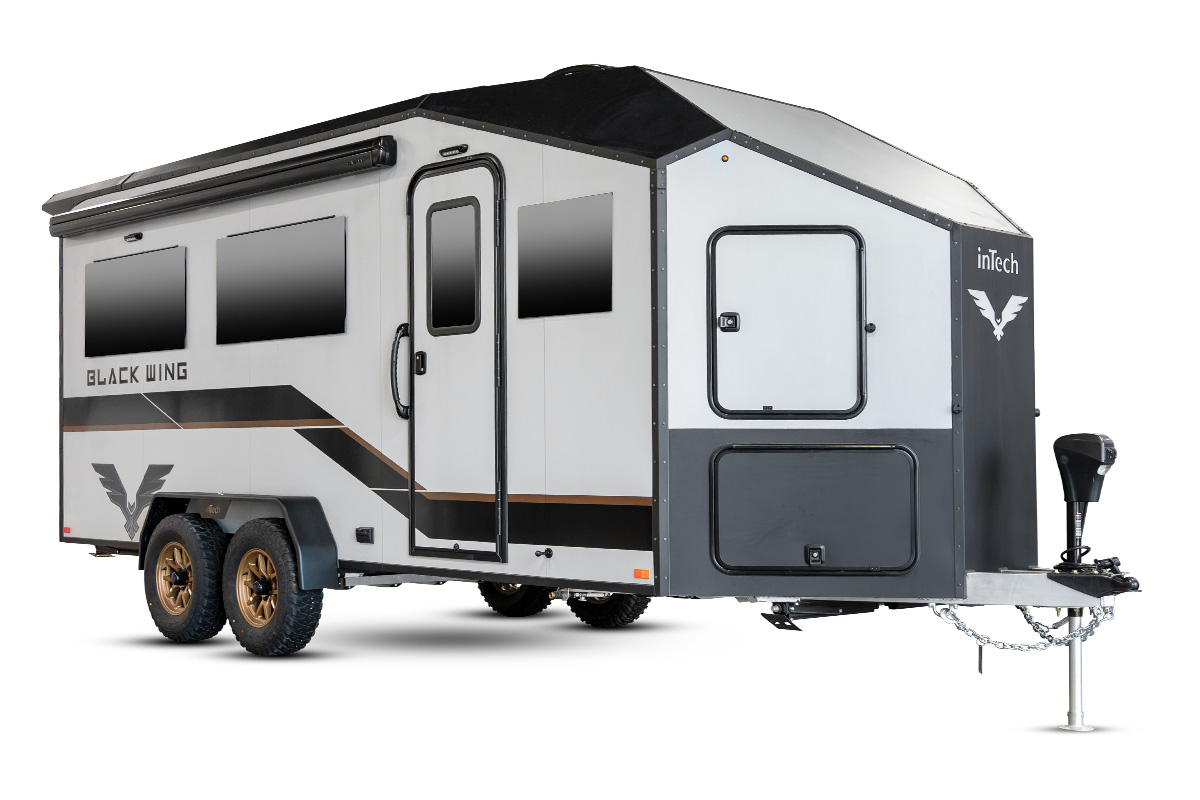

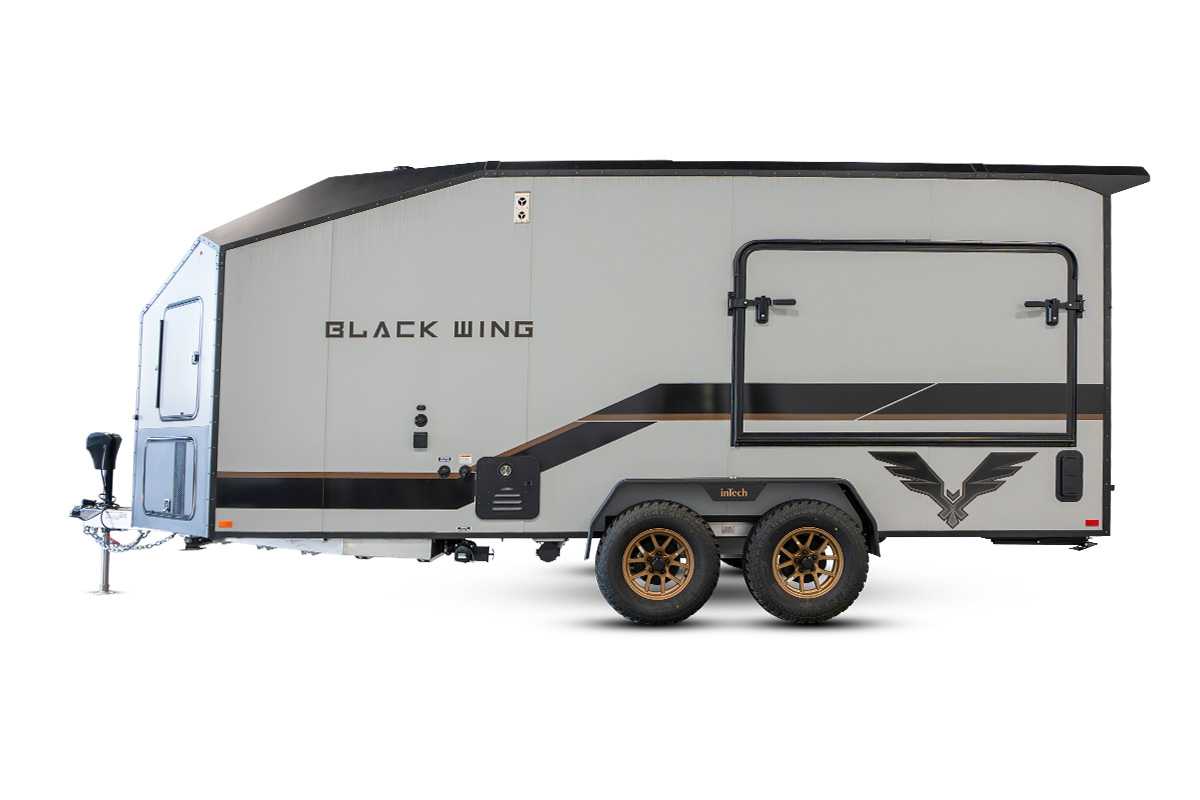

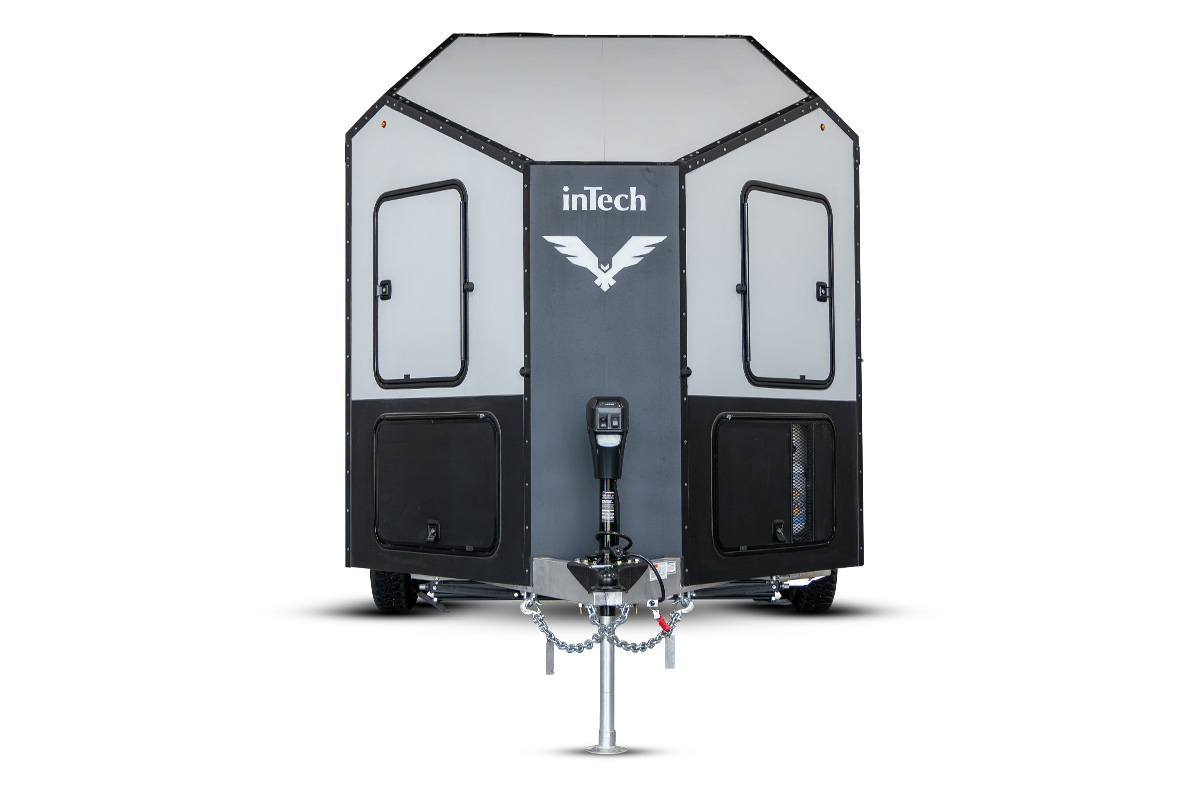

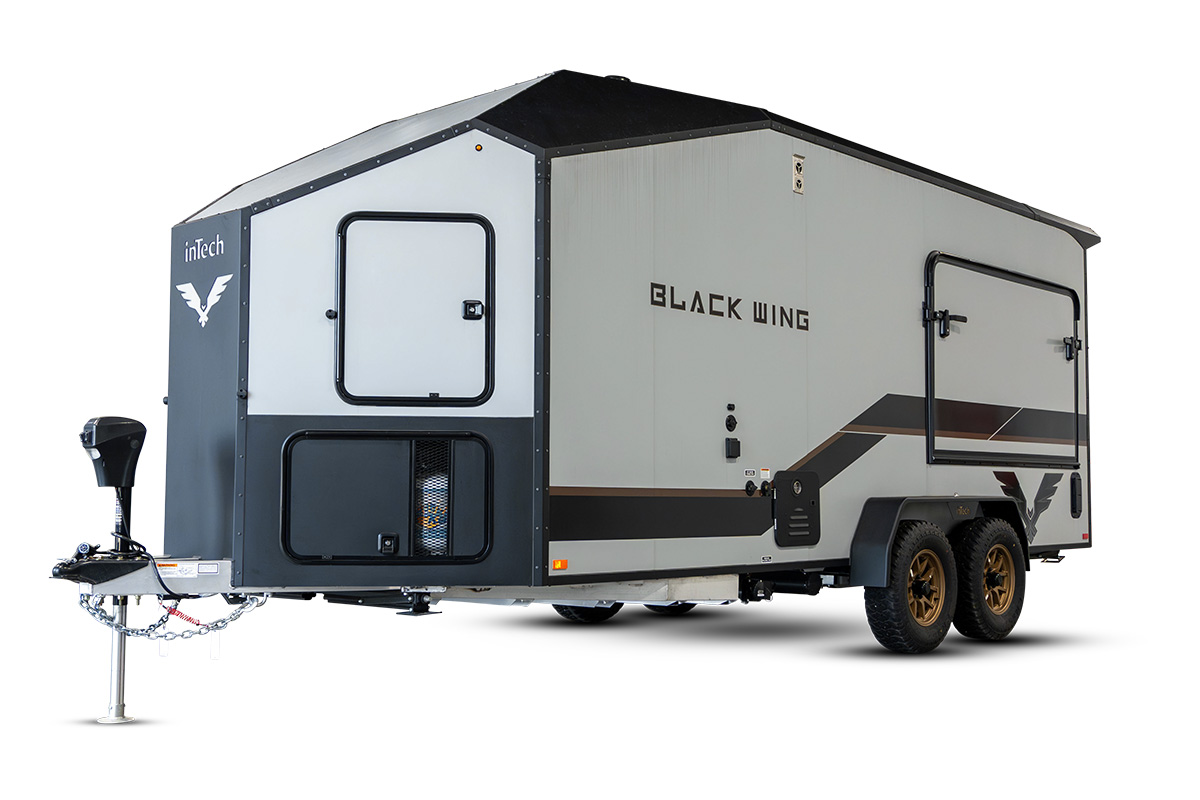

Rugged Design
The all-new Black Wing by inTech is built for adventure, offering unmatched durability with its all-aluminum frame and rugged design. Engineered to withstand the harshest conditions, its reinforced chassis and oversized off-road tires ensure you can explore uncharted terrains with confidence. Weather-sealed and purpose-built, the Black Wing is designed to protect your gear and keep you going, no matter the elements. Whether you're navigating the backcountry or hitting the trailhead, this trailer delivers both strength and freedom for those who seek to go beyond the beaten path.

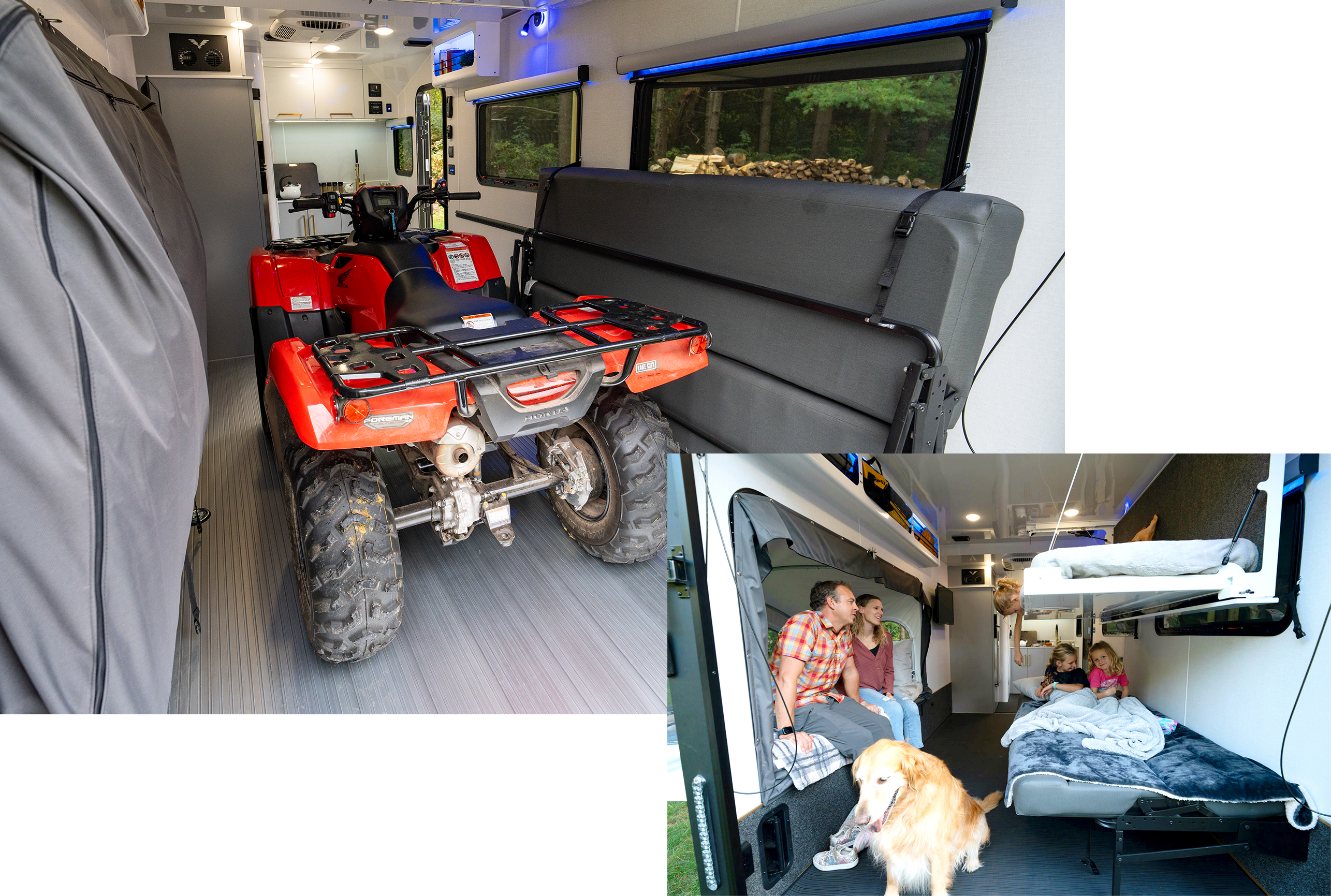

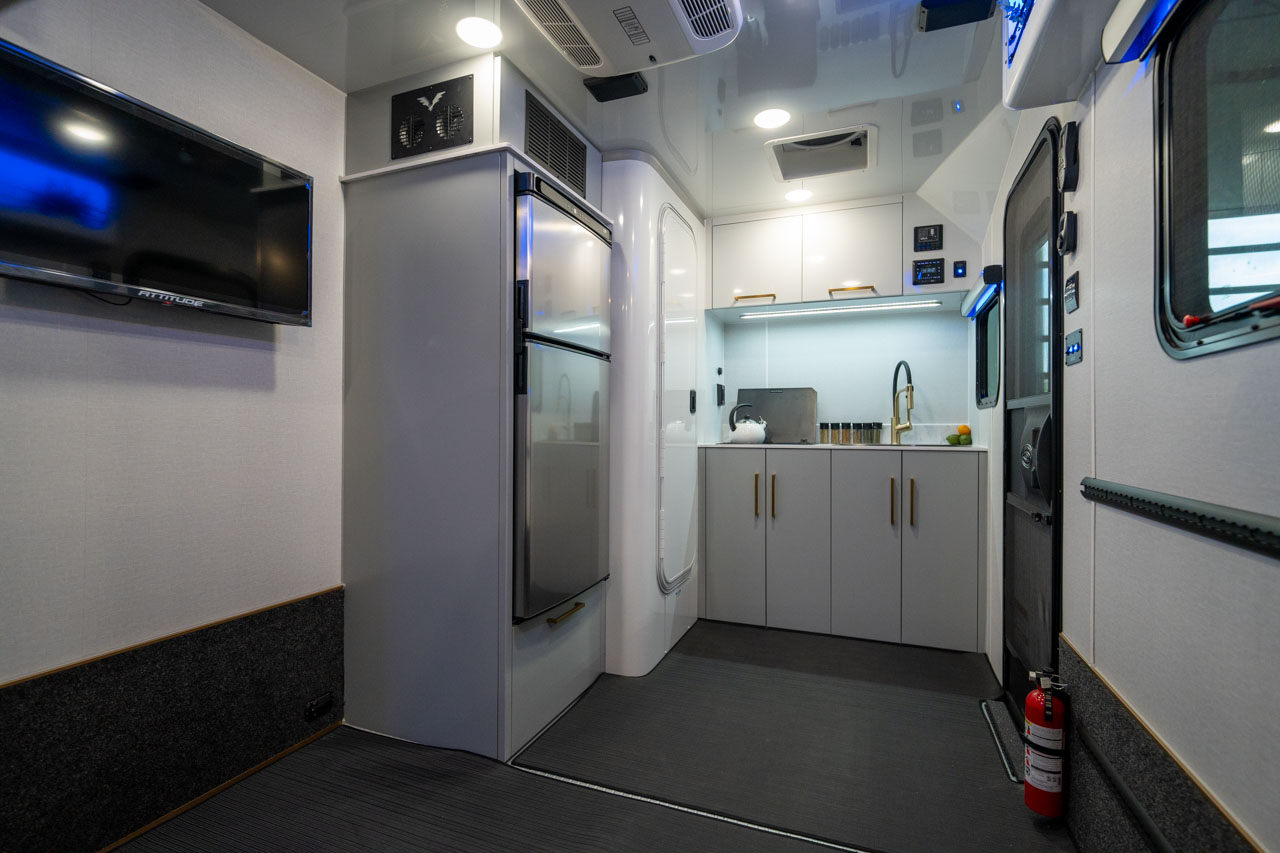

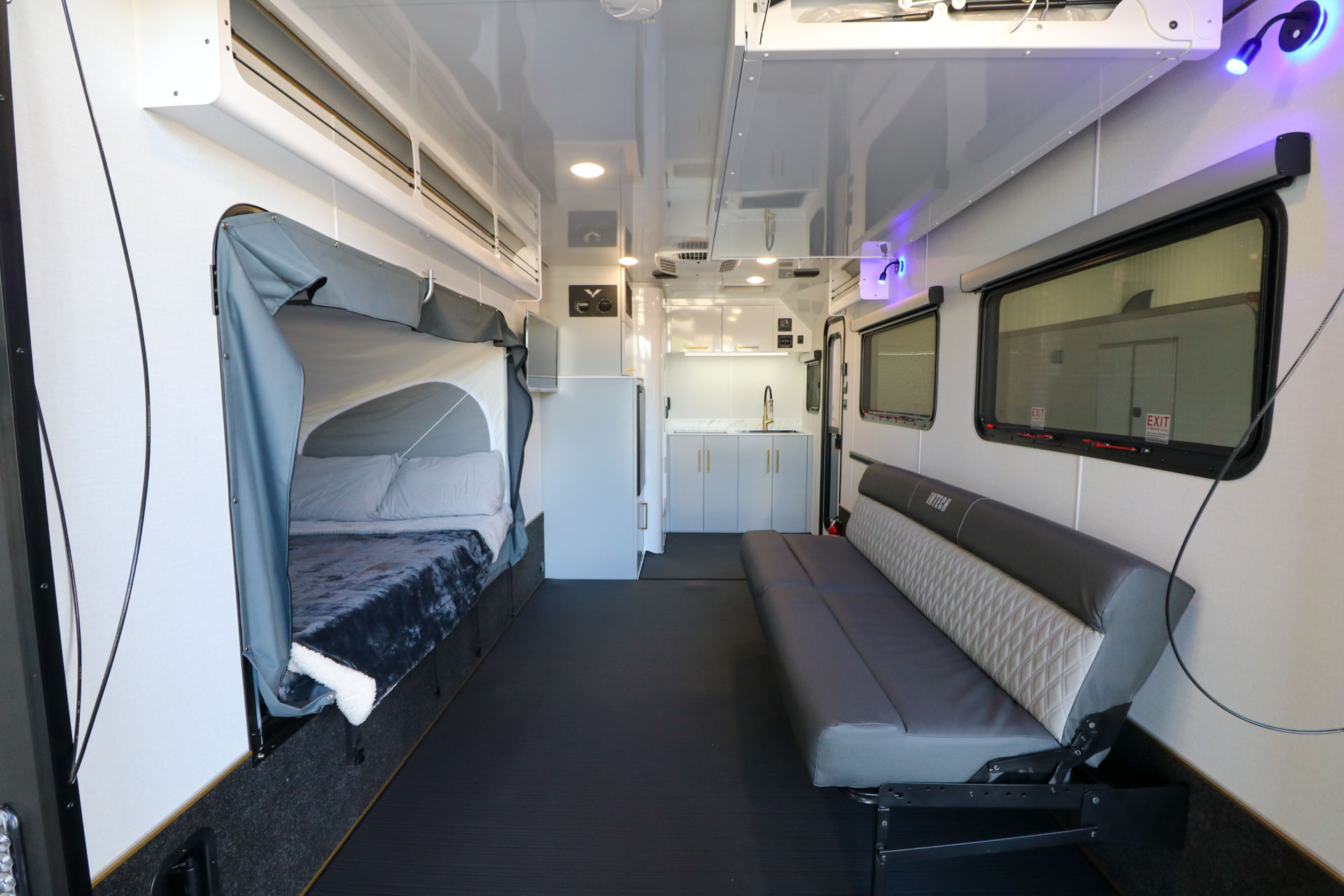

Spacious & Versatile Interior

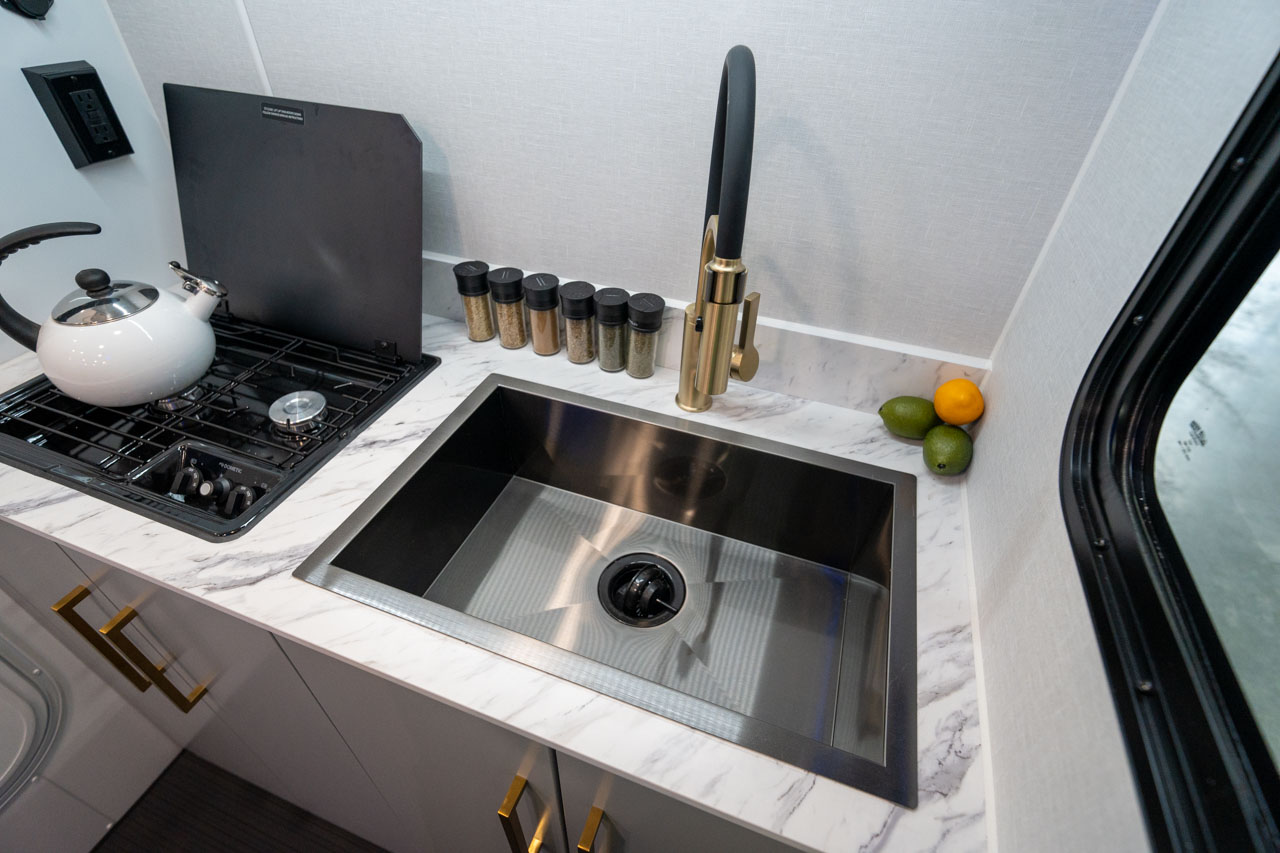

The Black Wing by inTech is more than just rugged on the outside — inside, it’s designed to deliver versatile, spacious comfort. With its expansive interior, this toy hauler offers a perfect blend of living and garage space, giving you room for both relaxation and adventure. Whether you’re unwinding in the large living area, cooking in the well-equipped kitchen, or taking a break in the comfortable sleeping quarters, the Black Wing ensures that your travels are as comfortable as they are thrilling. Plus, the multi-use rear garage space provides ample room for all your toys. The Happijac set-up makes it the ultimate solution for those who want to bring their lifestyle on the road.

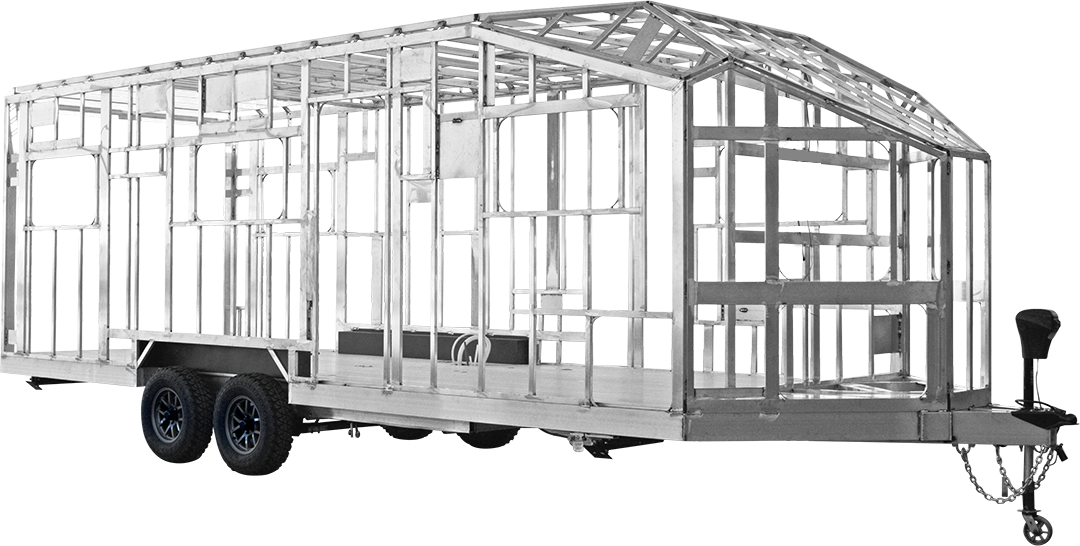

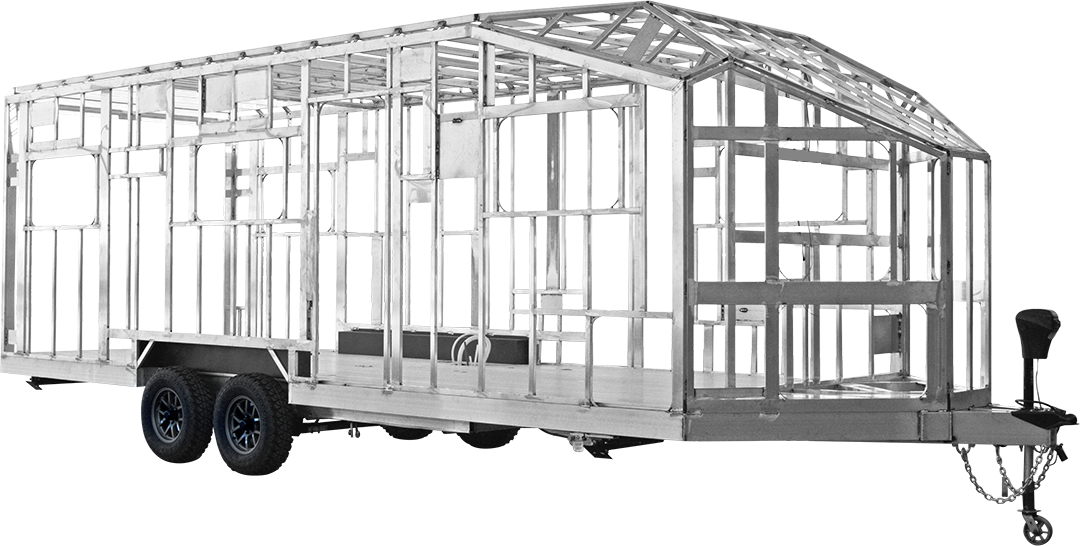

Fully Welded Cage & Frame Construction
Just like the rest of inTech's lineup, the Black Wing is built with a dependable all-aluminum, fully welded cage frame. This rugged all-aluminum construction allows the Black Wing to handle the toughest elements. If you’re searching for a toy hauler that offers it all—strength, durability, and versatility—look no further than the Black Wing. We’re confident it will exceed your expectations, no matter where the road takes you.
Key Features

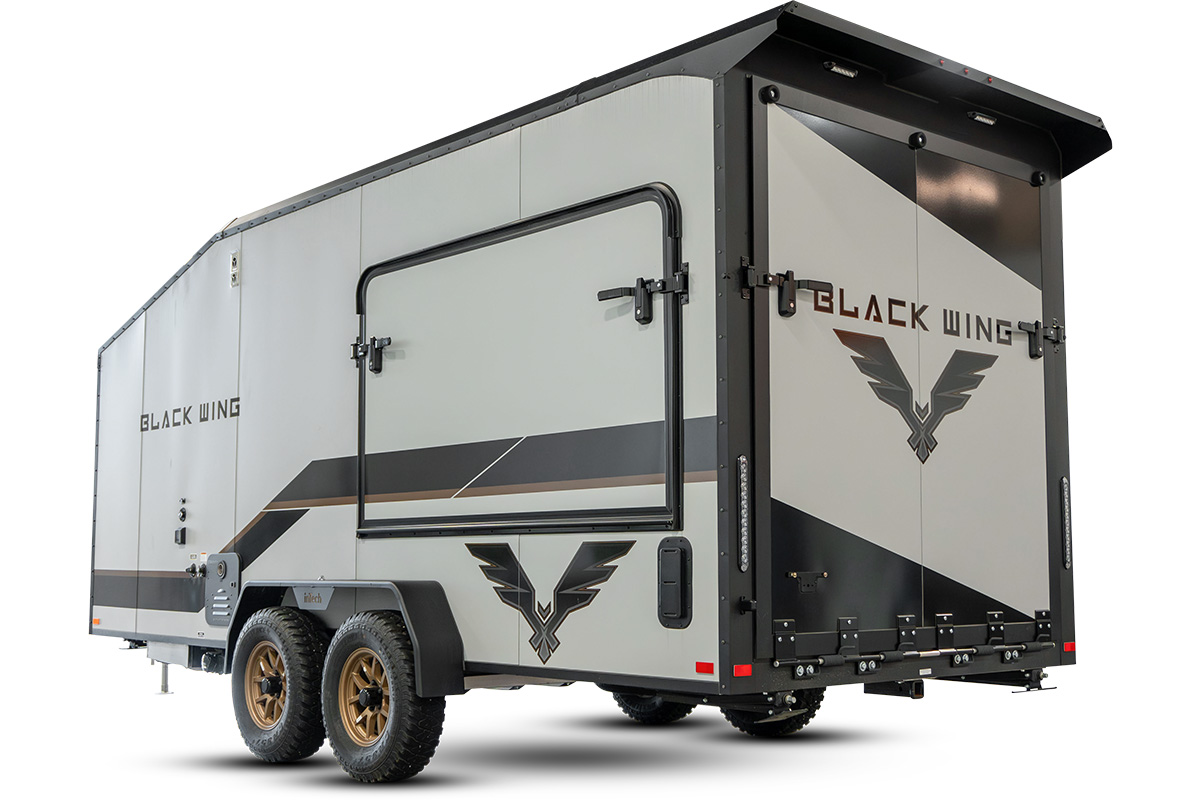

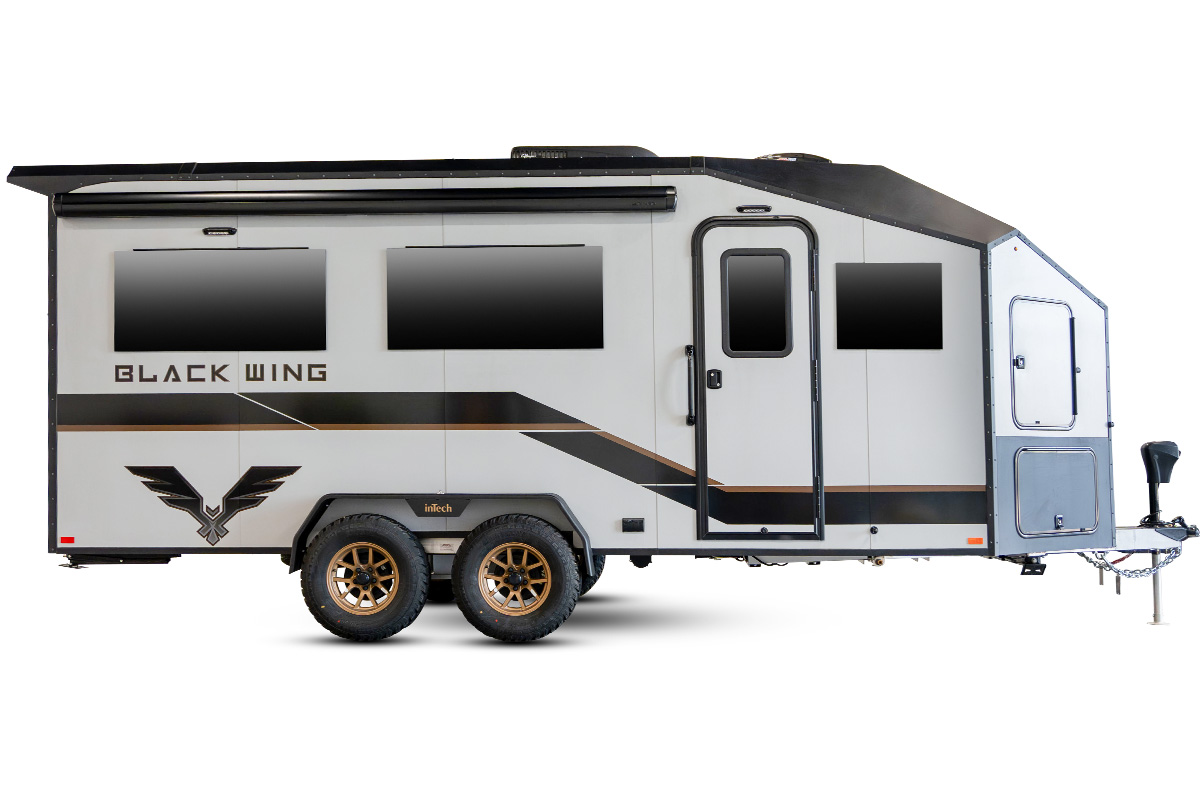

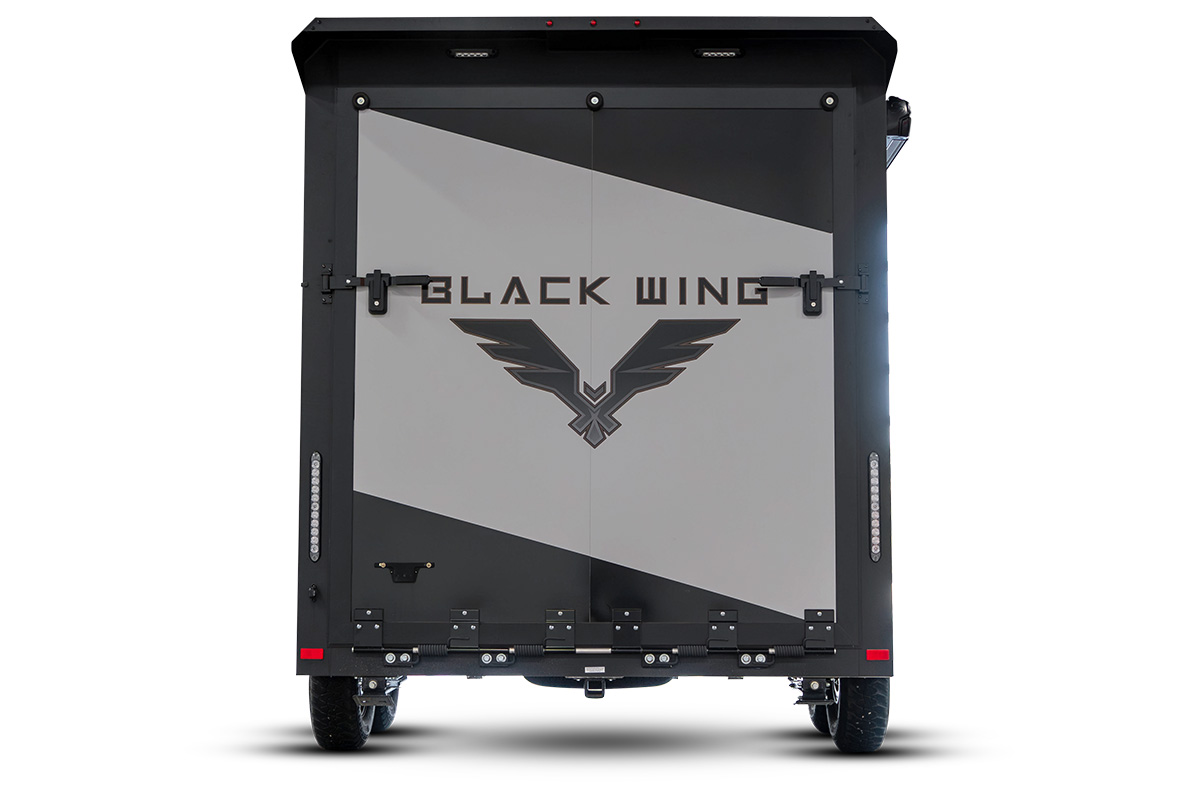

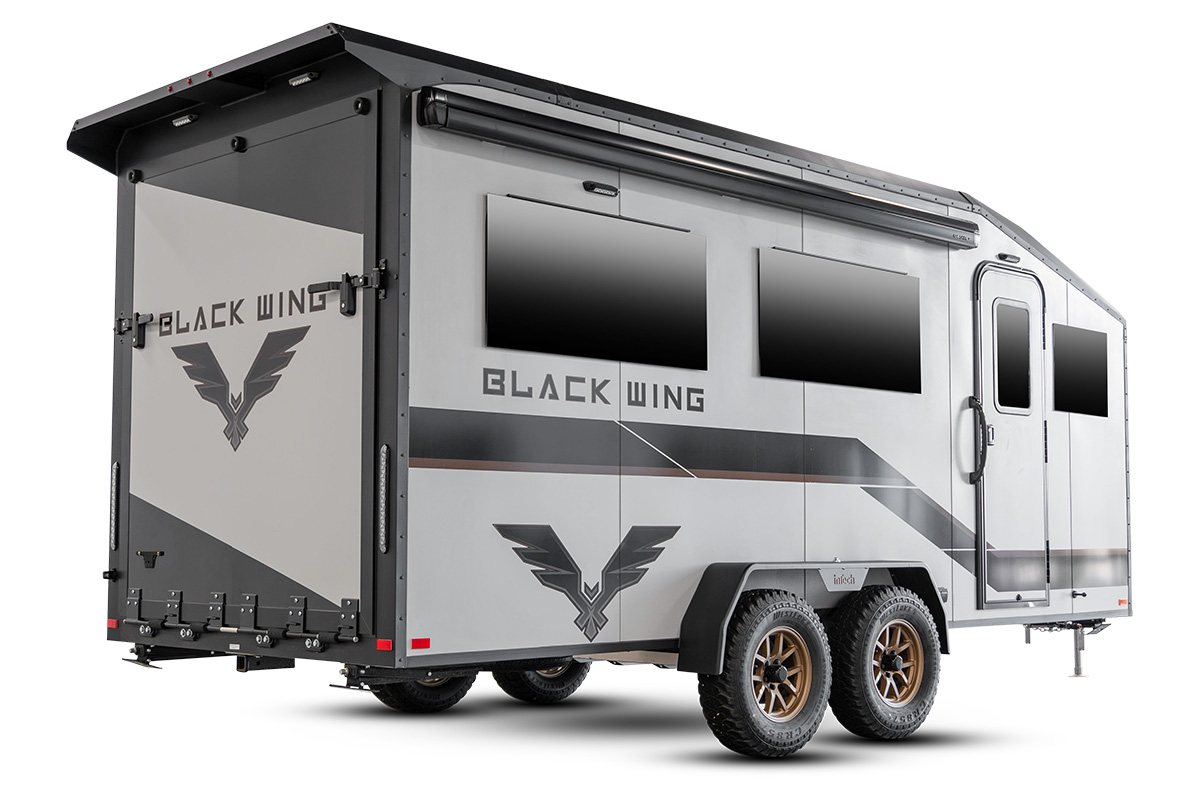

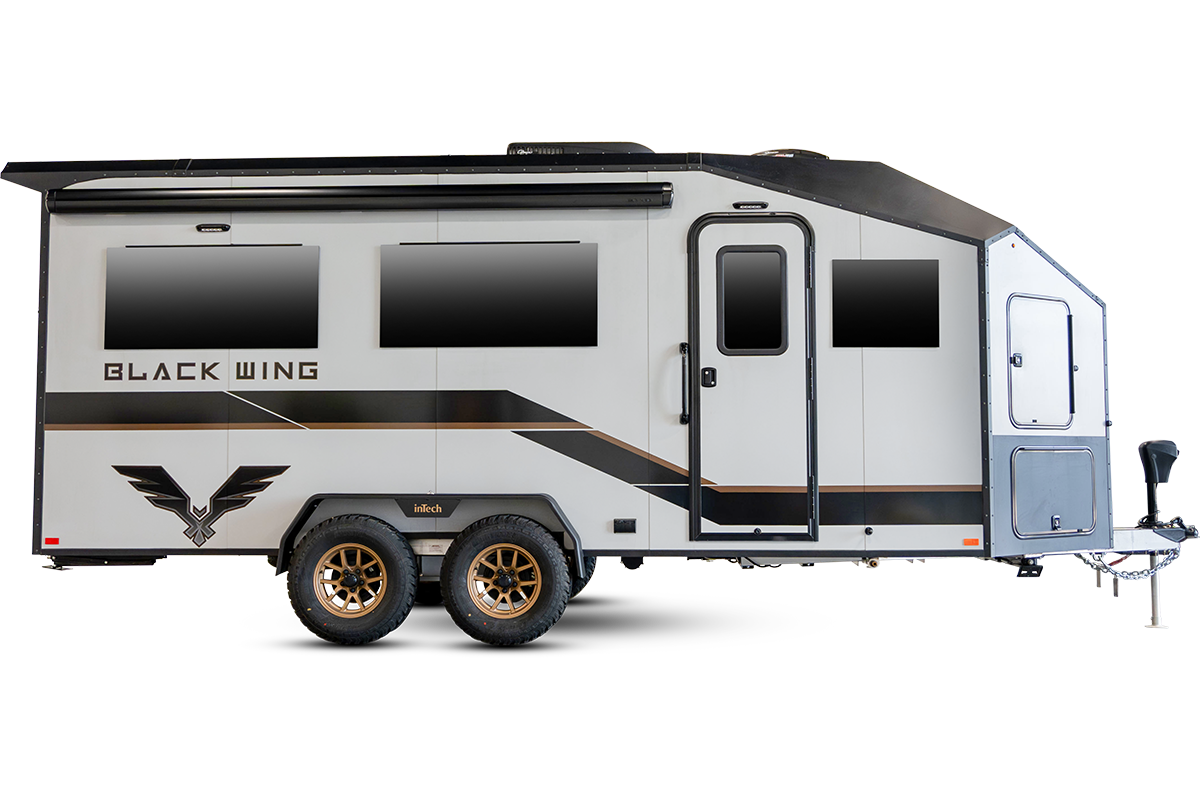

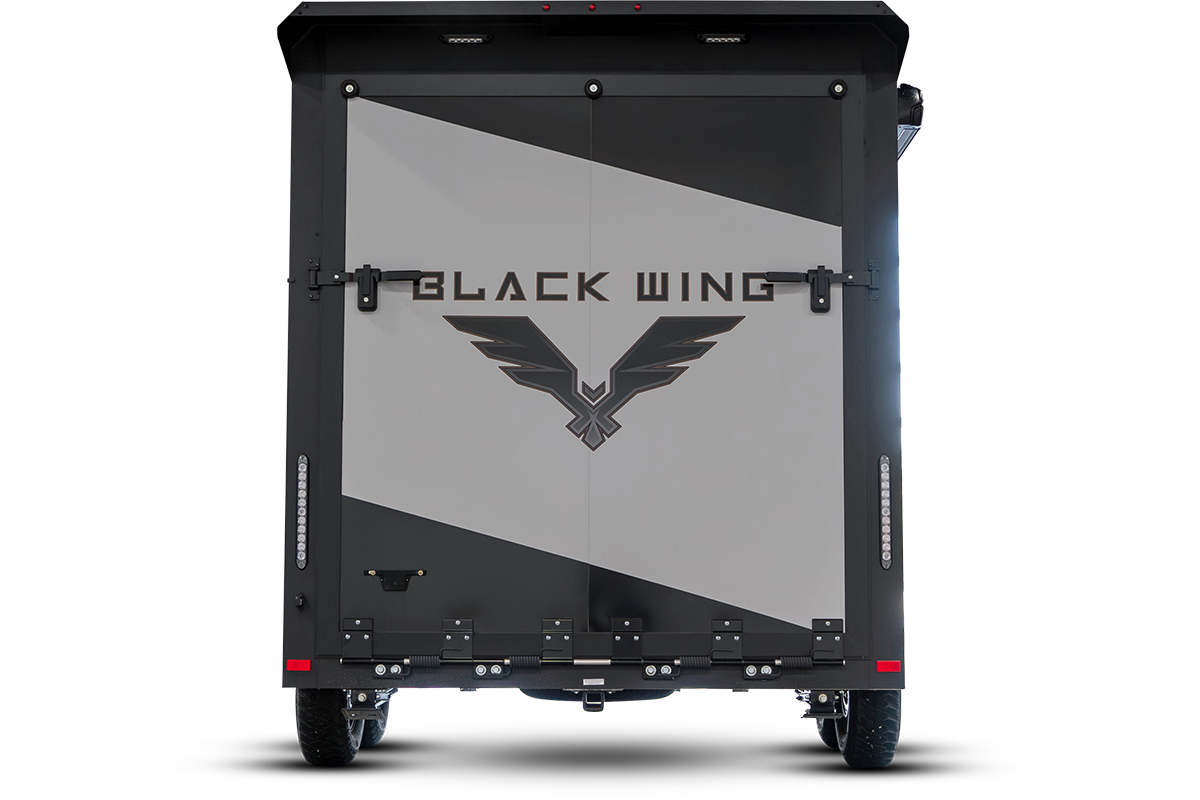

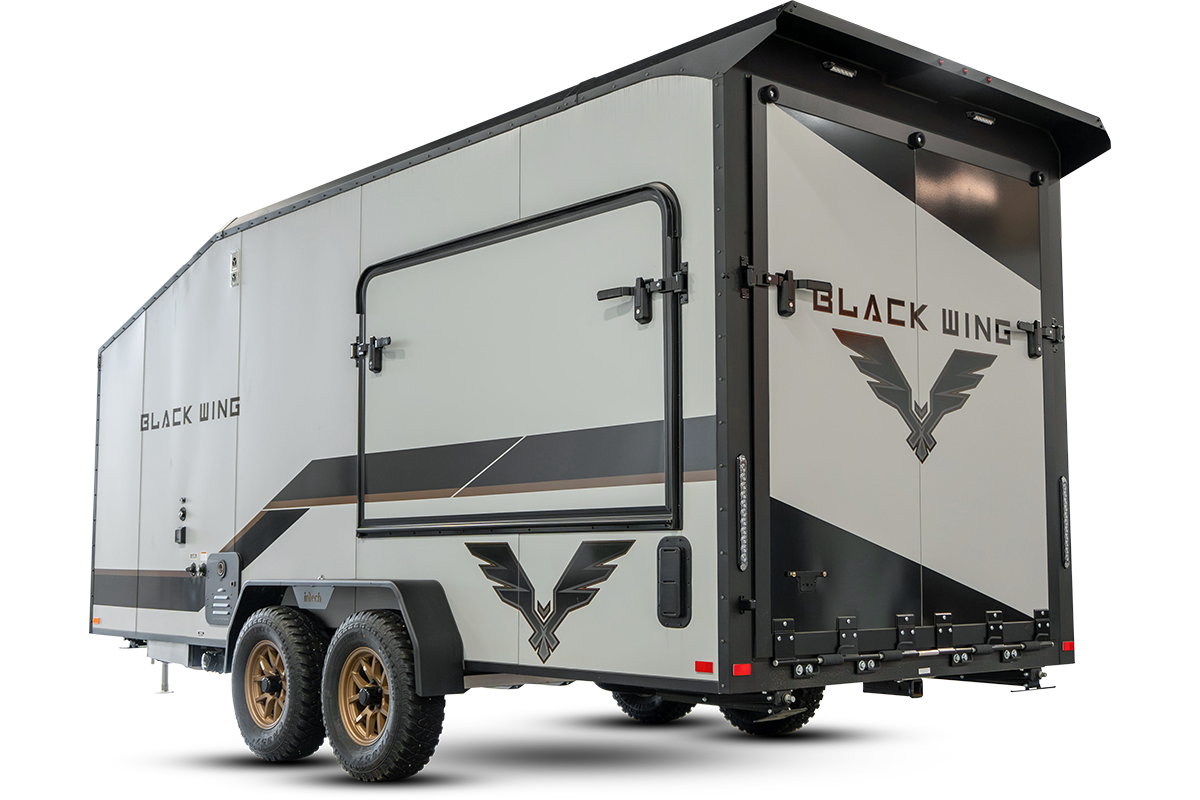

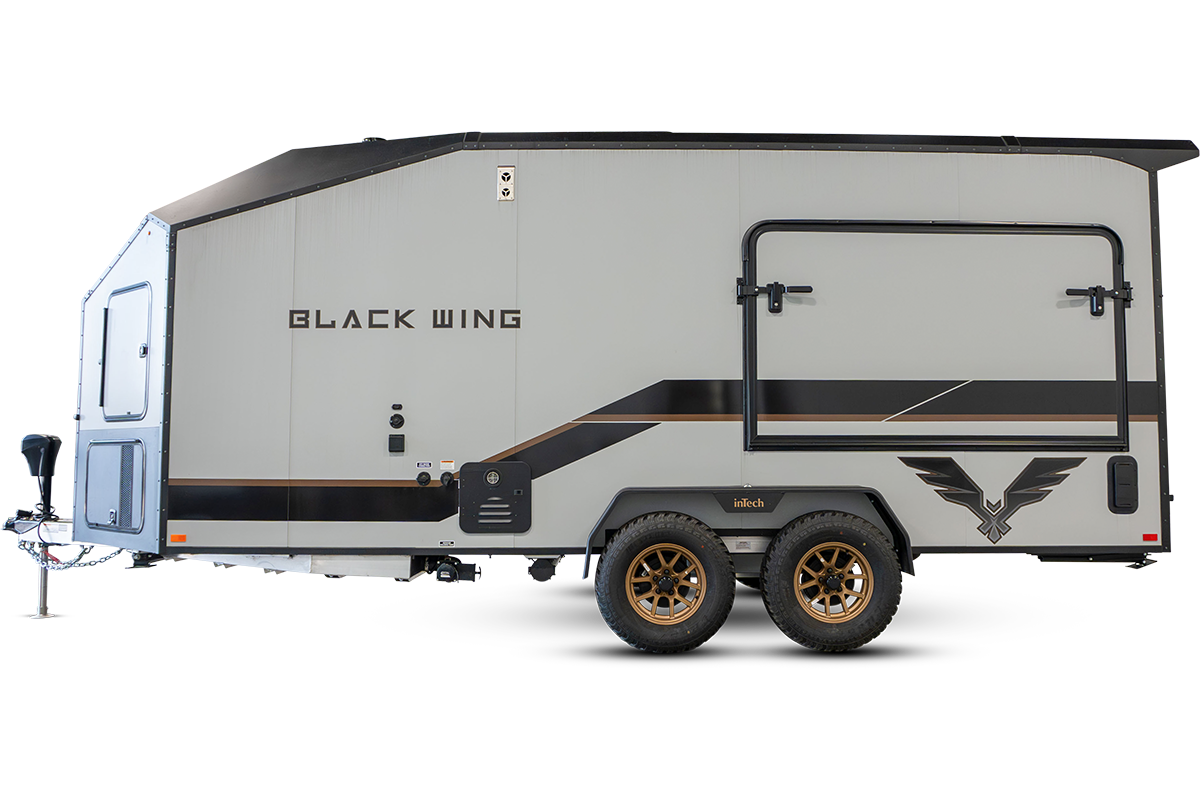

Exterior
360° Interior
Gallery
Options

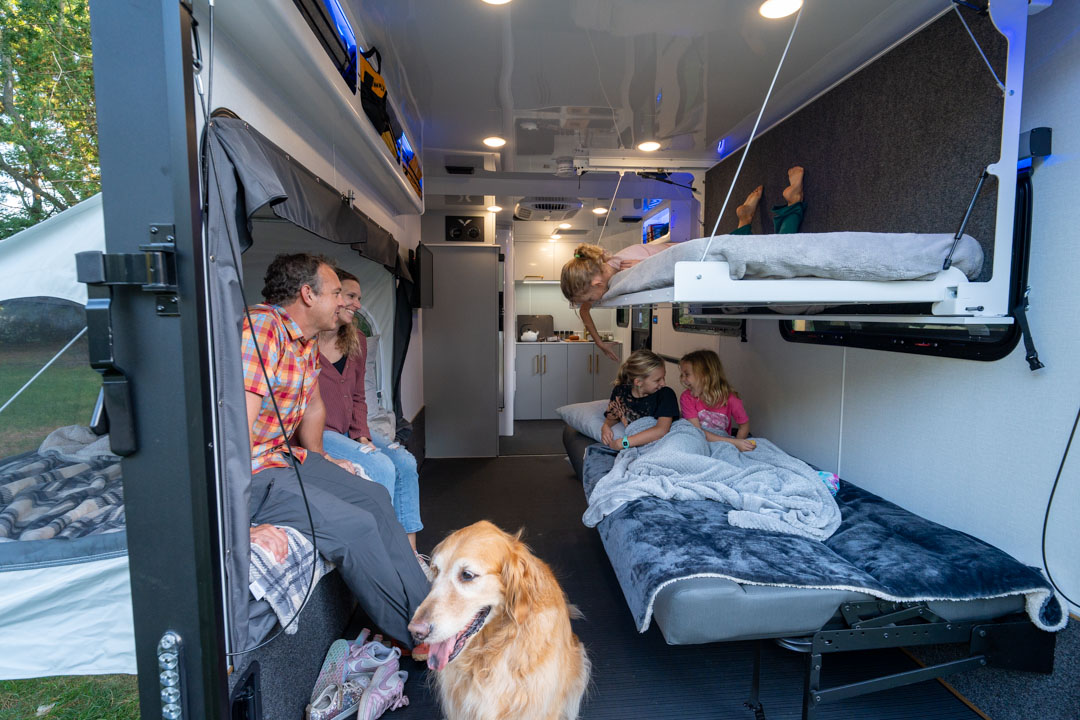

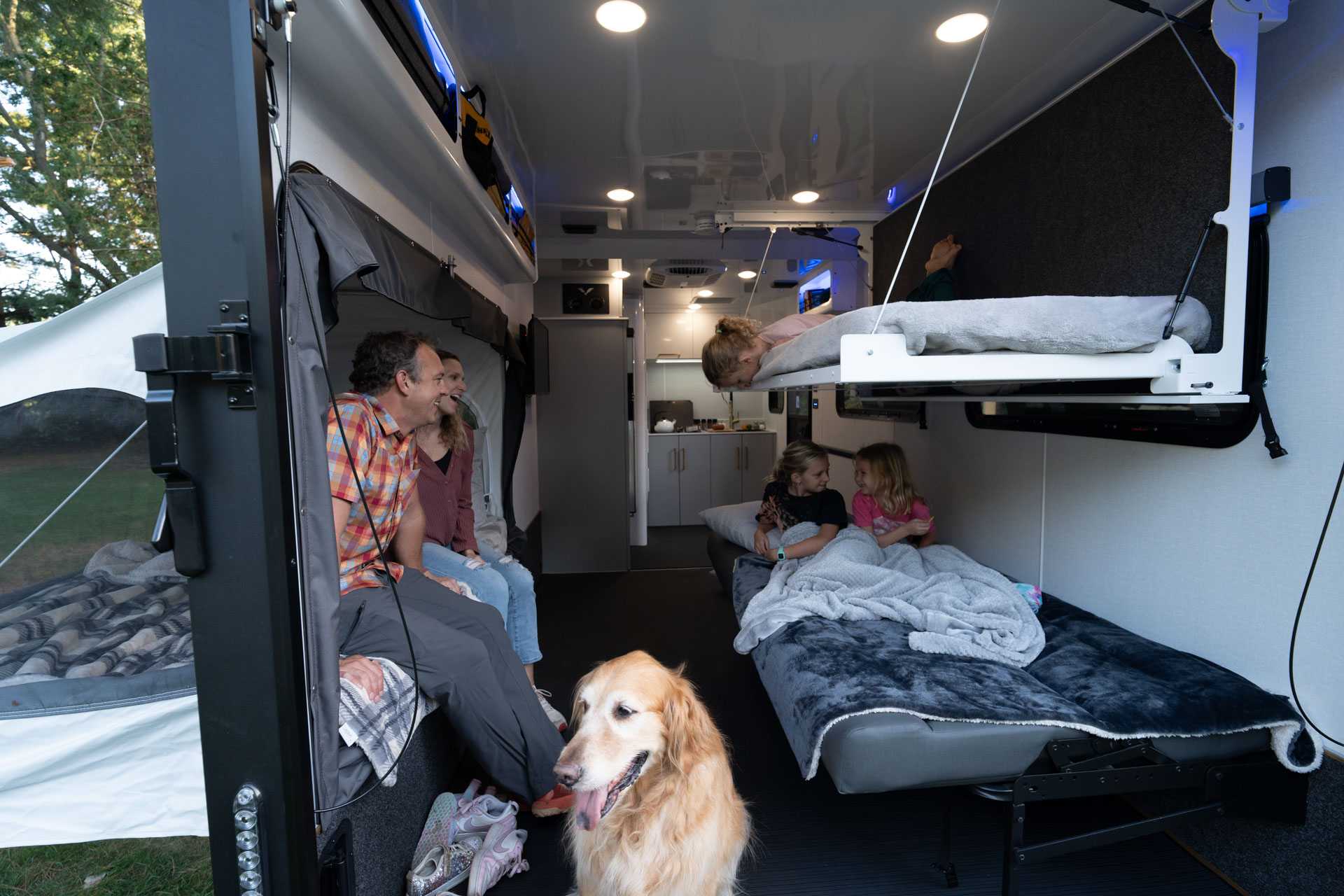

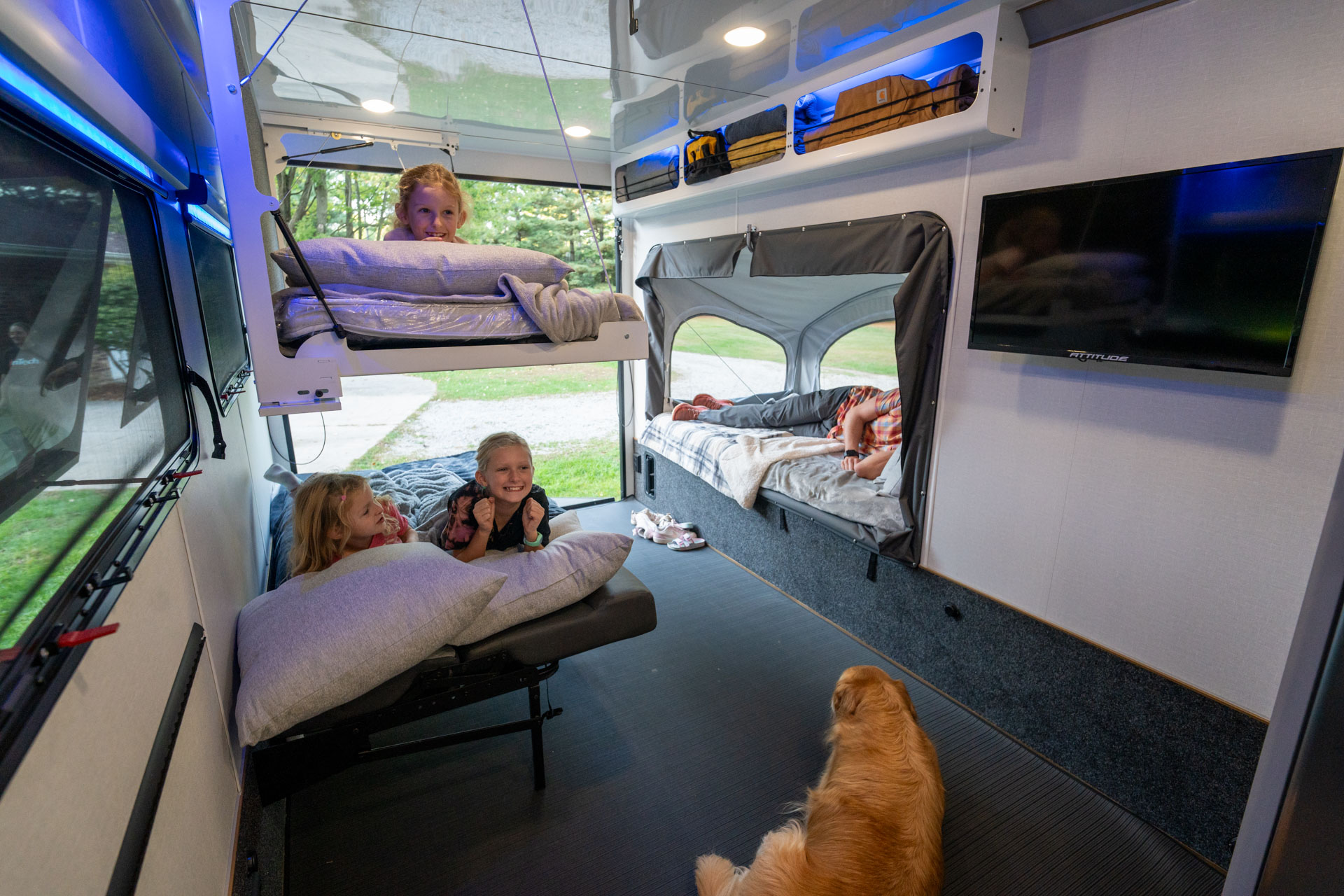

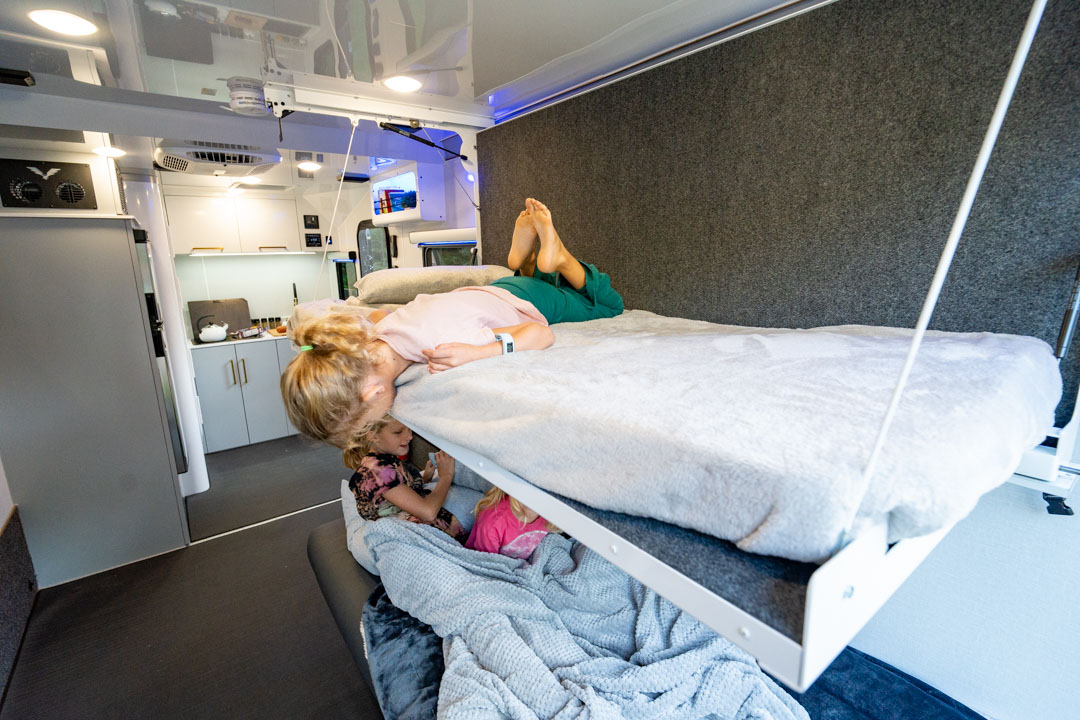

Drop-Down Bunk
Need additional sleeping space? You can option in the drop-down bunk that quickly and conveniently folds up and out of the way.

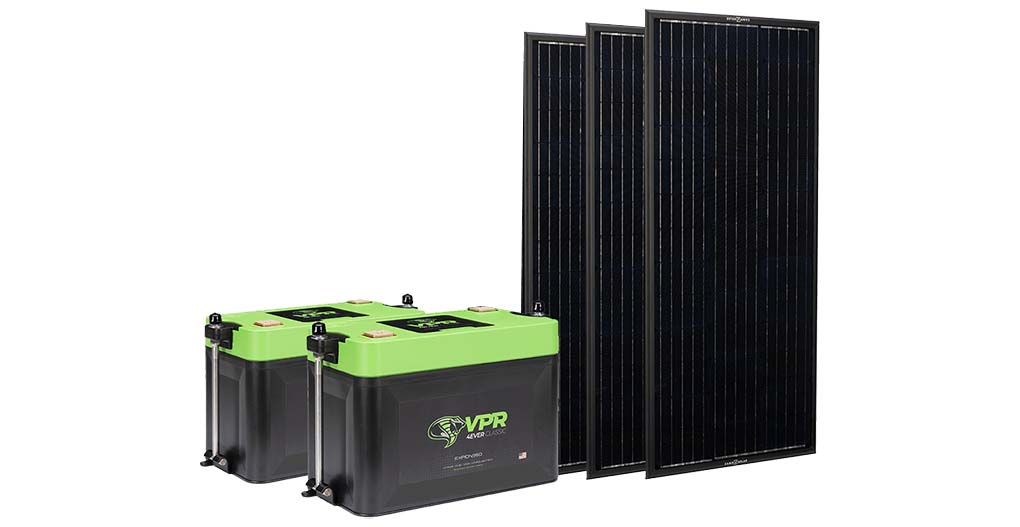

Off-Grid Package
Enjoy true freedom getting off-grid with inTech's Off-Grid Off-grid Package. 400 watts of solar, mixed with an MPPT charger controller, 200 amp hrs of lithium batteries, and a 2,000 Watt inverter allow you to take a path less traveled.

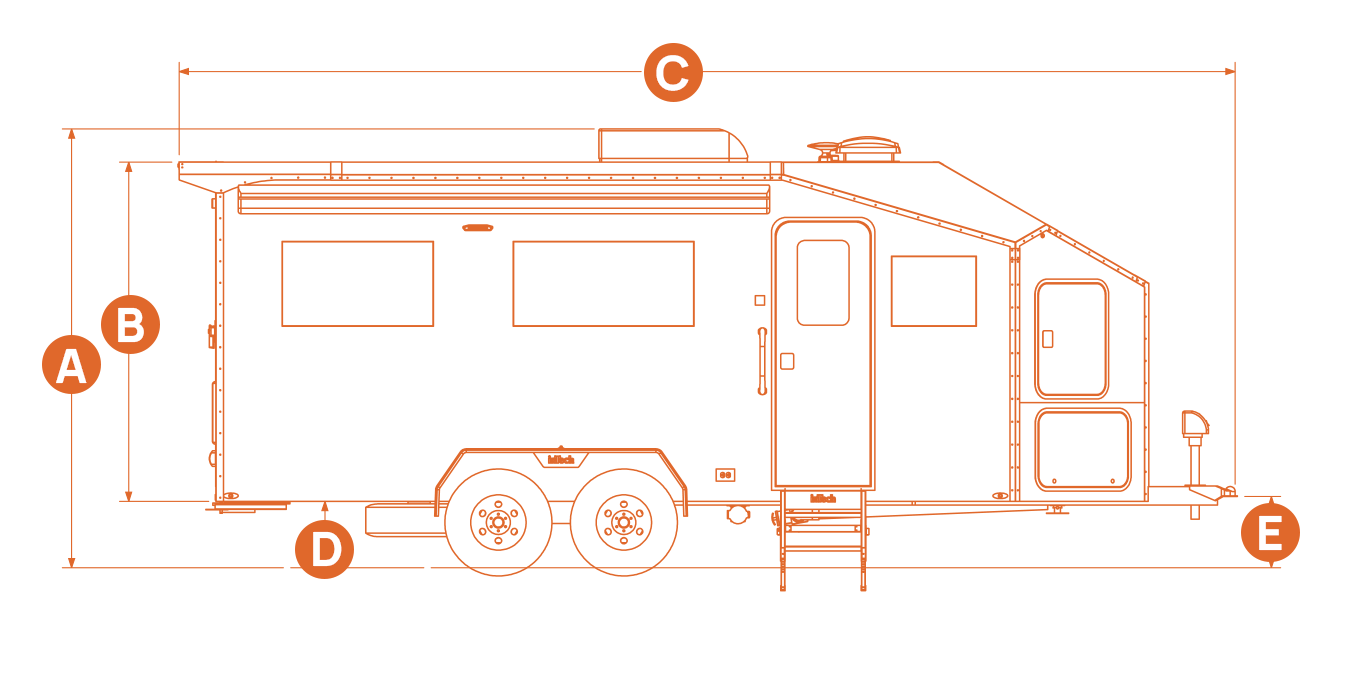

Dimensions
- (A) Overall Height w/ A/C - 9' 11"
- (B) Interior Height - 6' 9.5"
- (C) Overall Length - 23' 11"
- (D) Ground Clearance - 18"
- (E) Ball Height - 24"

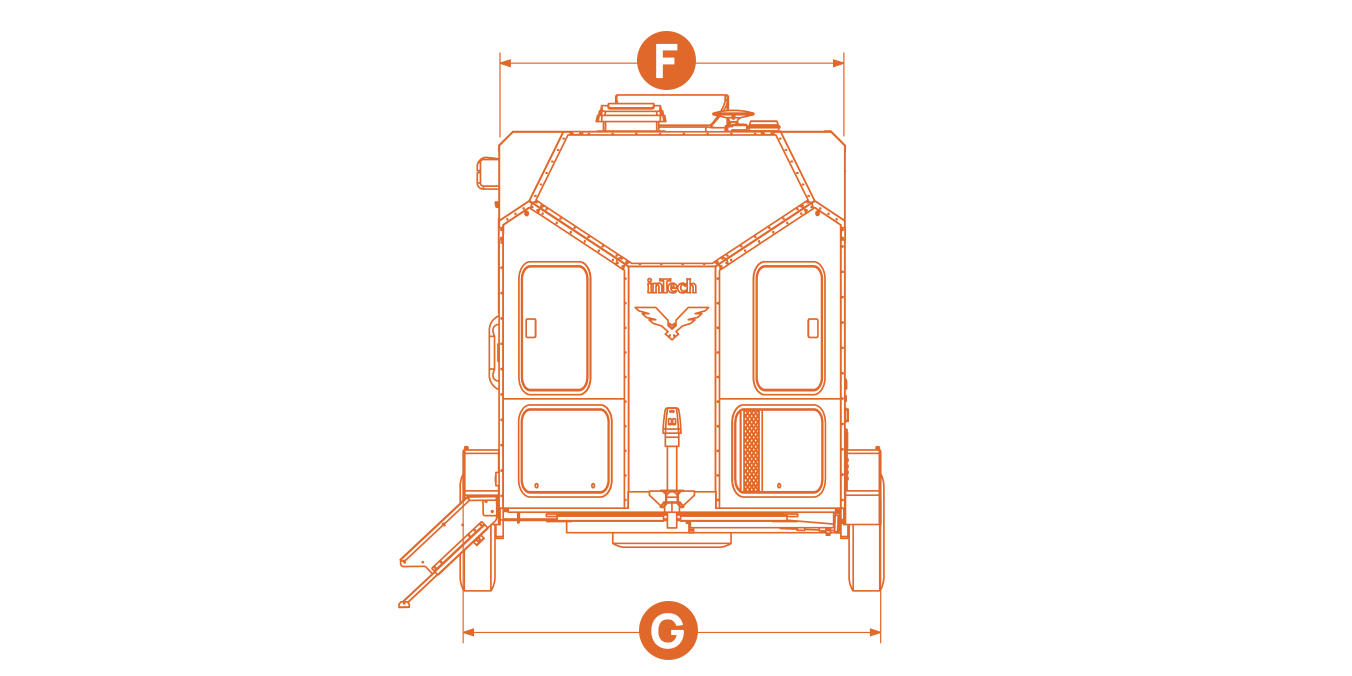

- (F) Box Width - 7'
- (G) Overall Width - 8' 6"
- (J/K) Tip Out - 6' 4" x 3' 7"
- (L/M) Wet Bath - 29.5" x 44"
- (N/O) Garage Space - 11' 3" x 6' 8.5"
- (P) Ramp Door Opening - 80.5" x 79"
Specifications
Dimensions, equipment, and pricing are subject to change without notice. For complete and up-to-date details regarding inTech RVs, please speak to an authorized inTech RV dealer.
| Overview | |
|---|---|
| Approx. Dry Weight | 4,000 - 4,500 lbs |
| Approx. Tongue Weight | 800 lbs |
| GVWR | 7,000 lbs |
| Net Carrying Capacity | 2,500 - 3,000 lbs |
| Ball Height | TBD |
| Fresh Tank | 28 Gal |
| Black Tank | 38 Gal |
| Exterior | |
|---|---|
| Frame | All-Aluminum / All-Tube / Cage Frame |
| Coupler | 2 5/16” Ball |
| Rear Receiver | 2” Receiver – 175# Capacity |
| Tires | ST235/75/R15 - Includes Spare Tire |
| Load Center | 45 Amp |
| Solar | Solar Prep |
| Exterior Skinning | .040 Aluminum |
| Roof | One Piece Aluminum |
| Exterior Storage Compartment | 2 |
| 20# LP Tank | 2 |
| Axle | Torsion |
| Entry Step | Fold-Away Double Step |
| Exterior Lighting | (2) Porch Lights, (2) Rear Loading Lights, Awning Light, Entry Step Light |
| Tongue Jack | Power |
| Interior | |
|---|---|
| Ventilation | MaxxAir Vent |
| Insulation | Bubble Foil (Walls & Ceiling) |
| Storage | Large Under Kitchen Cabinet Storage, (2) Overhead Cabinets, (2) Overhead Cubbies |
| Flooring | Anodized Extruded Aluminum w/ Customer Fitted Floor Mats |
| Tiedowns | (9) Rings |
| A/C | 11K Ducted w/ Soft Start |
| Furnace | 20K BTU |
| Entertainment | Bluetooth Stereo w/ (4) Interior Speakers, 32" Smart TV |
| Interior Windows | (3) W/ Blackout shades, Custom Valance w/ Accent Lighting |
| Outlets | (2) USB Outlet, (3) 120V Outlet |
| Water Heater | On Demand – LP |
| Kitchen | |
|---|---|
| Refrigerator | 8 Cu Ft 12V |
| Sink | Large Farmhouse Style Sink w/ Gold Faucet |

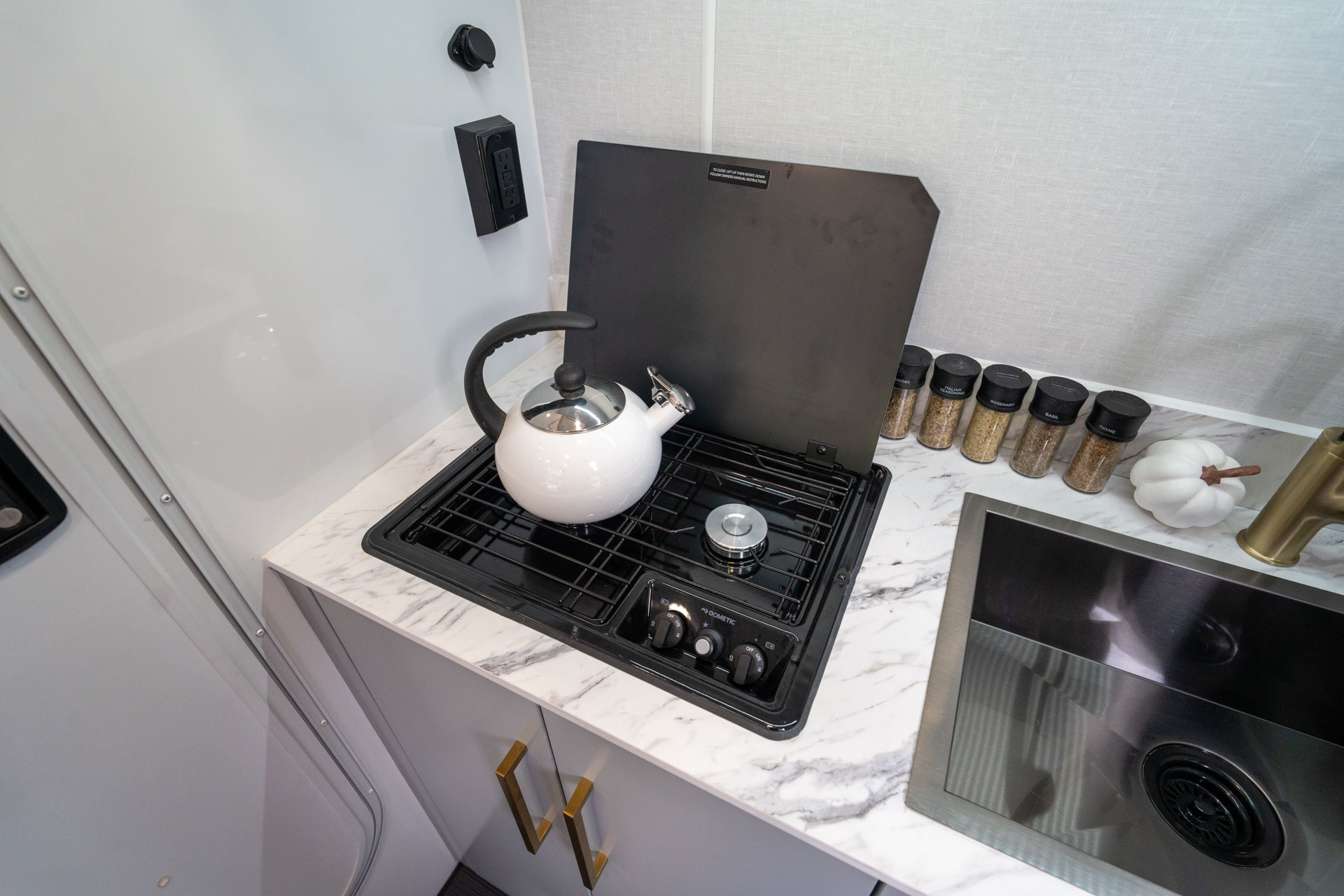

| Cooktop | 2 Burner |
| Bedroom | |
|---|---|
| Tip-Out Bed | 46”x81” Mattress (Tip-Out Rated at 1,100lbs) |
| Sleeper Sofa | 76" Sofa/Bed |

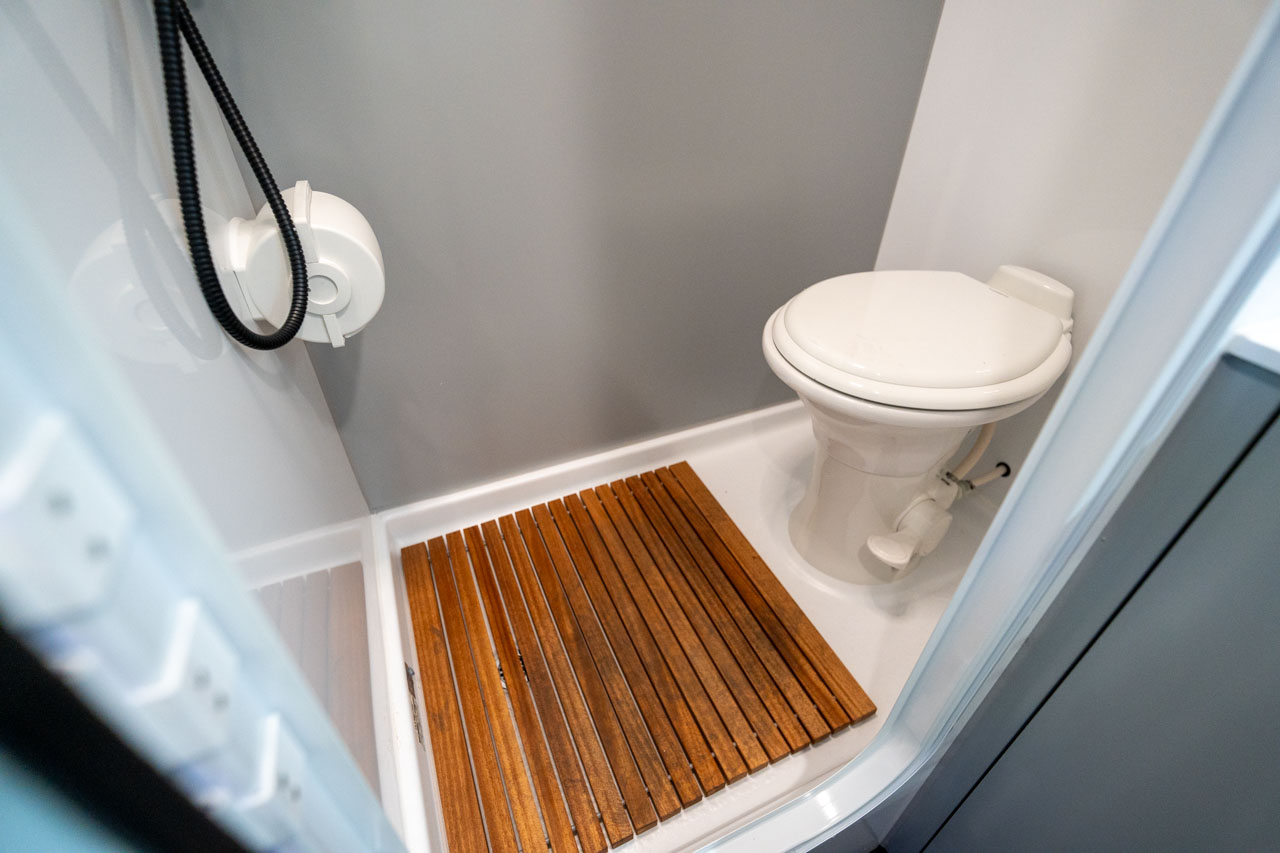

| Bathroom | |
|---|---|
| Toilet | Porcelain Toilet |
| Walls | Aluminum Walls w/ Sealing Exterior Door |
| Ventilation | Roof Vent w/ Onboard Switch |
| Storage | Mesh Shower Storage Net, (2) Towel Hooks |
